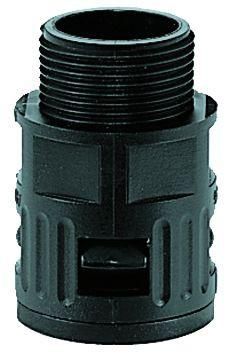

Flexa 15020027208 RQG-P AD28.5 PG16 black screw connection

Flexa 15020027208 RQG-P AD28.5 PG16 black screw connection

In stock

SKU: 914216

Price on request

€8.34

€0

Overview

Plastic quick screw connection straight RQG-P, IP 68 / IP 69K one-piece, PG external thread, high-sealing, for ROHRflex corrugated hoses Material: plastic (PA), seal TPE, color: black (also available in gray) Temperature range: -40°C ...+120°C Approvals: tested EN/IEC 61386-23 / UL 1696 CSA 22.2 UR-File-no E86359 / EN 45545-2 (HL 2) / NFPA 130 - ASTM E 162-E 662 SMP 800-C / GGVS / Lloyds Register of Shipping / Gost Properties: resistant to oil and petrol / silicone-, cadmium- and halogen-free / acid and solvent-resistant

Property	Value
Thread size:	PG16
Nominal size in inches:	3/4 inch
Perm. in combination with protective hose according to DIN EN 61386-23:	yes
Design:	straight
Rotatable thread:	no
Design:	external thread
Connection type:	thread
Thread type:	other
Thread material:	polyamide (PA)
Thread length:	12.0 mm
Lenght:	48.5 mm
Height:	37.0 mm
Seal material:	Thermoplastic elastomers (TPE)
Min. inner Ø of hose:	23.0 mm
Max. outer Ø of hose:	28.5 mm
Color:	black
Approved in combination with CSA protective hose:	yes
Approved in combination with protective hose UR:	yes
Approved in combination with protective hose VdTÜV/GGVSEB:	yes
Approved in combination with protective hose Lloyds Register:	yes
Nominal diameter:	28.5 mm
Protection class (IP):	IP68
Material:	Polyamide (PA)
Operating temperature:	-40 to +120 °C
