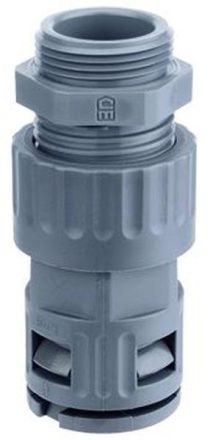

Flexa 15020031025 RQGZ-M AD21,2 M25x1,5 grey plastic quick screw connection

Flexa 15020031025 RQGZ-M AD21,2 M25x1,5 grey plastic quick screw connection

In stock

SKU: 912117

Price on request

€7.52

€0

Overview

Plastic quick screw connection straight RQGZ-M, IP 68 / IP 69K one-piece, metric external thread, strain relief, for ROHRflex corrugated hoses Material: plastic (PA), color: gray (also available in black) Temperature range: -40°C ...+120°C Approvals: tested EN/IEC 61386-23 / UL 1696 CSA 22.2 UR-File-no E86359 / EN 45545-2 (HL2) / NFPA 130 - ASTM E 162-E 662 SMP 800-C / Lloyds Register of Shipping / Gost Properties: highly sealing / resistant to oil and petrol / free of silicone, cadmium and halogen / largely resistant to acids and solvents / optimal hold while sealing the cables

Property	Value
Thread size:	M25 x 1.5
Nominal size in inches:	1/2 inch
Permissible. in combination with protective hose according to DIN EN 61386-23:	yes
Design:	straight
Rotatable thread:	no
Design:	external thread
Connection type:	thread
Thread type:	metric
Thread turns per inch:	1.5
Thread material:	polyamide (PA)
Weight length:	8.0 mm
Lenght:	70.0 mm
Height:	33.5 mm
Seal material:	Thermoplastic elastomers (TPE)
Min. inner Ø of hose:	16.5 mm
Max. outer Ø of hose:	21.2 mm
Color:	gray
Perm. in combination with protective hose CSA:	yes
Approved in combination with protective hose UR:	yes
Approved in combination with protective hose VdTÜV/GGVSEB:	no
Approved in combination with protective hose Lloyds Register:	yes
Nominal diameter:	21.2 mm
Protection class (IP):	IP68
Material:	Polyamide (PA)
Operating temperature:	-40 to +120 °C
