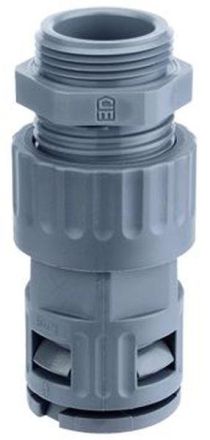

Flexa 15020031050 RQGZ-M AD42,5 M50x1,5 grey plastic quick screw connection

In stock
SKU: 912116
€33.58
Into a basketIn the basketGo

Overview

Plastic quick screw connection straight RQGZ-M, IP 68 / IP 69K one-piece, metric external thread, strain relief, for ROHRflex corrugated hoses Material: plastic (PA), color: gray (also available in black) Temperature range: -40°C ...+120°C Approvals: tested EN/IEC 61386-23 / UL 1696 CSA 22.2 UR-File-no E86359 / EN 45545-2 (HL2) / NFPA 130 - ASTM E 162-E 662 SMP 800-C / Lloyds Register of Shipping / Gost Properties: highly sealing / resistant to oil and petrol / free of silicone, cadmium and halogen / largely resistant to acids and solvents / optimal hold while sealing the cables

Property Value
Thread size: M50 x 1.5
Nominal size in inches: 1 1/4 inch
Perm. in combination with protective hose according to DIN EN 61386-23: yes
Design: straight
Rotatable thread: no
Design: external thread
Connection type: thread
Thread type: metric
Thread turns per inch: 1.5
Thread material: polyamide (PA)
Weight length: 12.0 mm
Lenght: 141.0 mm
Height: 58.0 mm
Seal material: Thermoplastic elastomers (TPE)
Min. inner Ø of hose: 36.0 mm
Max. outer Ø of hose: 42.5 mm
Color: gray
Perm. in combination with protective hose CSA: yes
Approved in combination with protective hose UR: yes
Approved in combination with protective hose VdTÜV/GGVSEB: no
Approved in combination with protective hose Lloyds Register: yes
Nominal diameter: 42.5 mm
Protection class (IP): IP68
Material: Polyamide (PA)
Operating temperature: -40 to +120 °C

Characteristics

Approved in combination with protective hose URYes
Approved in combination with protective hose CSAYes
HABRQGZ-M AD42,5 M50x1,5 grey
Minimal order10 pcs
ManufacturerFlexa
HAN15020031050
GTIN4025113189462
VersionStraight
DesignExternal thread
Rotating threadNo
Operating temperature-40 to +120 °C
ColorGray
Thread typeMetric
Height58.0 mm
Length141.0 mm
Nominal diameter42.5 mm
Nominal size in inches1 1/4 inch
IP protection)IP68
Connection typeThread
MaterialPolyamide (PA)
