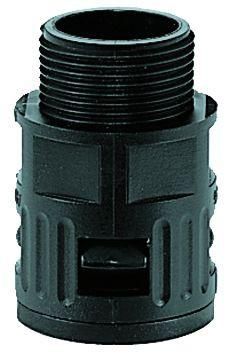

Flexa 15020037218 RQG-M AD18,5 M20x1,5 black hose fitting

In stock

SKU: 914163

Price on request

€2.74

€0

Overview

Plastic quick screw connection straight RQG-M, IP 68 / P 69K one-piece, high-sealing, metric external thread, for ROHRflex corrugated hoses Material: plastic (PA), seal TPE, color: black (also available in gray) Temperature range: -40°C ...+120°C Approvals: tested EN/IEC 61386-23 / UL 1696 CSA 22.2UR-File-no E86359 / EN 45545-2 (HL 2) / NFPA 130 - ASTM E 162-E 662 SMP 800-C/ GGVS / Lloyds Register of Shipping / Gost, Properties: resistant to oil and petrol / silicone-, cadmium- and halogen-free / acid and solvent-resistant

Property	Value
Thread size:	M20 x 1.5
Nominal size in inches:	other
Perm. in combination with protective hose according to DIN EN 61386-23:	yes
Design:	straight
Rotatable thread:	no
Design:	external thread
Connection type:	thread
Thread type:	metric
Thread turns per inch:	1.5
Thread material:	polyamide (PA)
Weight length:	13.0 mm
Lenght:	42.0 mm
Height:	26.0 mm
Seal material:	Thermoplastic elastomers (TPE)
Min. inner Ø of hose:	13.5 mm
Max. outer Ø of hose:	18.5 mm
Color:	black
Max. in combination with protective hose CSA:	yes
Approved in combination with protective hose UR:	yes
Approved in combination with protective hose VdTÜV/GGVSEB:	yes
Approved in combination with protective hose Lloyds Register:	yes
Nominal diameter:	18.5 mm
Protection class (IP):	IP68
Material:	Polyamide (PA)
Operating temperature:	-40 to +120 °C
