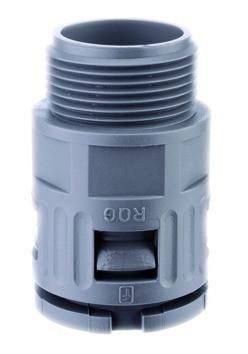

Flexa 15020055019 RQG1-M AD18.5 M20x1.5 grey plastic quick screw connection

In stock

SKU: 913136

Price on request

€2.71

€0

Overview

Plastic quick screw connection straight RQG1-M, IP 66 one-piece, metric external thread, conical sealing, for ROHRflex corrugated hoses Material: plastic (PA), color: gray (also available in black) Temperature range: -40°C ...+120°C Approvals: tested EN/IEC 61386-23 / UL 1696 CSA 22.2 UR-File-no E86359 / NFPA 130 - ASTM E 162-E 662 SMP 800-C / Lloyds Register of Shipping / Gost, Properties: resistant to oil and petrol / free from silicone, cadmium and halogen / largely resistant to acids and solvents

Property	Value
Thread size:	M20 x 1.5
Nominal size in inches:	other
Perm. in combination with protective hose according to DIN EN 61386-23:	yes
Design:	straight
Rotatable thread:	no
Design:	external thread
Connection type:	thread
Thread type:	metric
Thread turns per inch:	1.5
Thread material:	polyamide (PA)
Weight length:	13.0 mm
Lenght:	43.0 mm
Height:	26.0 mm
Seal material:	without seal
min. inner Ø of hose:	14.3 mm
max. outer Ø of hose:	18.5 mm
Color:	gray
Perm. in combination with protective hose CSA:	no
Approved in combination with protective hose UR:	yes
Approved in combination with protective hose VdTÜV/GGVSEB:	no
Approved in combination with protective hose Lloyds Register:	yes
Nominal diameter:	18.5 mm
Protection class (IP):	IP66
Material:	Polyamide (PA)
Operating temperature:	-40 to +120 °C
