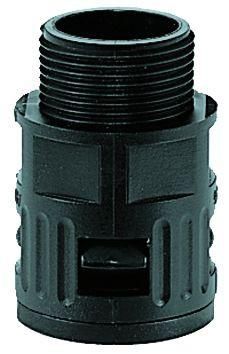

Flexa 15020056206 RQG-N AD21,2 NPT 1/2 inch black screw connection assembly

In stock
SKU: 914249
€3.39
Into a basketIn the basketGo

Overview

Plastic quick screw connection straight RQG-N, IP 68 / IP 69K one-piece. high-sealing, NPT external thread, for ROHRflex corrugated hoses Material: plastic (PA), seal TPE, color: black Temperature range: -40°C ...+120°C Approvals: tested EN/IEC 61386-23 / UL 1696 CSA 22.2 UR-File-no E86359 / EN 45545-2 (HL 2) / NFPA 130 - ASTM E 162-E 662 SMP 800-C / UL Conduit Fitting 514D/ GGVS / Lloyds Register of Shipping / Gost, Properties: high-sealing / resistant to oil and petrol / silicone-, cadmium- and halogen-free / acid and solvent-resistant

Property Value
Thread size: other
Nominal size in inches: 1/2 inch
Permissible. in combination with protective hose according to DIN EN 61386-23: yes
Design: straight
Rotatable thread: yes
Design: external thread
Connection type: thread
Thread type: NPT
Thread material: polyamide (PA)
Thread length: 13.0 mm
Lenght: 44.0 mm
Height: 29.5 mm
Seal material: Thermoplastic elastomers (TPE)
Min. inner Ø of hose: 15.5 mm
Max. outer Ø of hose: 21.2 mm
Color: black
Approved in combination with CSA protective hose: yes
Approved in combination with protective hose UR: yes
Approved in combination with protective hose VdTÜV/GGVSEB: yes
Approved in combination with protective hose Lloyds Register: yes
Nominal diameter: 21.2 mm
Protection class (IP): IP68
Material: Polyamide (PA)
Operating temperature: -40 to +120 °C

Characteristics

Approved in combination with protective hose URYes
Approved in combination with protective hose CSAYes
HABRQG-N AD21.2 NPT 1/2inch black
Minimal order50 pcs
ManufacturerFlexa
HAN15020056206
GTIN4025113173058
VersionStraight
DesignExternal thread
Rotating threadYes
Operating temperature-40 to +120 °C
ColorBlack
Thread typeNPT
Height29.5 mm
Length44.0 mm
Nominal diameter21.2 mm
Nominal size in inches1/2 inch
IP protection)IP68
Connection typeThread
MaterialPolyamide (PA)
