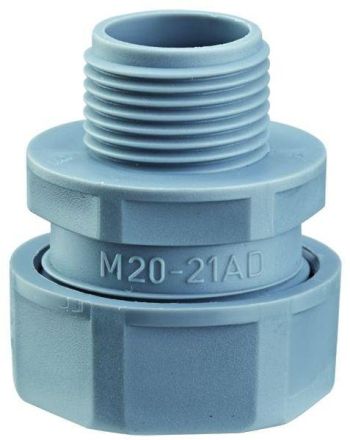

Flexa 15020130021 US-K PG21 hose fitting

In stock
SKU: 911914
€10.83
Into a basketIn the basketGo

Overview

Plastic screw connection straight USK-P, IP 54 suitable for plastic protective hoses AIRflex-KUW-PVC-AS / AIRflex-KUW-PU-AS / AIRflex-K / AIRflex-GRS incl. inner sleeve and sealing ring, PG external thread Material: plastic (PP), color: gray Temperature range: -10°C ... +110°C Approvals: UL 1696-UR file E86359 / CSA 22.2, file 227.3-05 Properties: high protection against dust and liquids / force-locking connection between hose and screw connection / vibration- and tensile-resistant

Property Value
Nominal size in inches: 3/4 inch
Perm. in combination with protective hose DIN EN 61386-23: no
With integrated holder: no
Thread connection size: PG21
Material of the screw connection: Polypropylene (PP)
Nominal diameter: 27.0 mm
Design: straight
Rotatable thread: no
Design: External thread
Connection type: Thread
Thread length: 11.0 mm
One-piece: no
Seal material: Thermoplastic elastomers (TPE)
Smallest inner diameter of the hose: 22.0 mm
Largest outer diameter of the hose: 27.0 mm
Total height: 44.0 mm
Color: gray
Approved in combination with protective hose UR: yes
Total length: 48.0 mm
Protection class (IP): IP54

Characteristics

One-pieceNo
Total height44.0 mm
Smallest inner diameter of the hose22.0 mm
Approved in combination with protective hose DIN EN 61386-23No
Approved in combination with protective hose URYes
HABUS-K PG21
Minimal order25 pcs
ManufacturerFlexa
HAN15020130021
GTIN4025113150431
VersionStraight
DesignExternal thread
Rotating threadNo
ColorGray
Overall length48.0 mm
Thread connection sizePG21
Thread length11.0 mm
Nominal diameter27.0 mm
Nominal size in inches3/4 inch
IP protection)IP54
Connection typeThread
