Fränkische Rohrwerke 19230110 Kabuflex R plus Type 750 Type 110 cable protection pipe

In stock
SKU: 1032395
€13.86
Into a basketIn the basketGo

Overview

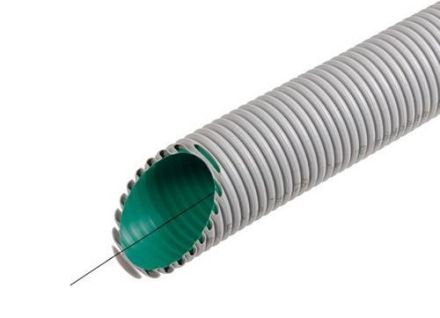

Kabuflex R plus type 750 is a flexible PE cable protection pipe for use in concrete floor slabs, with a green inner skin for quick cable insertion. Another feature is the improved stability due to the higher material usage. It is corrugated on the outside and has a transparent double plug-in sleeve (sand-tight) attached on one side. This cable protection pipe is used for special applications where the standard pressure resistance is exceeded. Special double plug-in sleeves connect the pipes in a sand-tight (SD) manner, and a profile sealing ring creates a watertight connection (WD) up to 0.5 bar. The Kabuflex R plus type 750 is supplied with a pull cord.

Property Value
Outer diameter: 110 mm
Inner diameter: 93 mm
Shape: corrugated on the outside, smooth on the inside
Design: flexible
Color: grey
Surface: untreated
Surface polished: no
Material: Plastic
Material quality: Polyethylene (PE)
Transparent: no

Characteristics

Inner diameter93 mm
HABKabuflex R plus Type 750 Type 110
Minimal order50 meters
HAN19230110
GTIN4013960362893
VersionFlexible
Outer diameter110 mm
ColorGray
ShapeOutside wavy, inside smooth
SurfaceUntreated
TransparentNo
MaterialPlastic
Material qualityPolyethylene (PE)
