Fränkische Rohrwerke 20310020 FRÄNKISCHE STECK-ESM20SW Staro Steck-ES M20 pipe sw

In stock
SKU: 538573
€6.31
Into a basketIn the basketGo

Overview

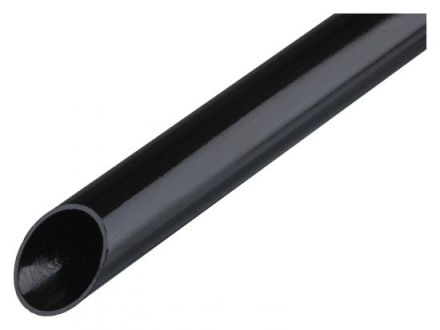

Staro Steck-ES is a heavy black painted steel pipe made of rolled mild steel with a stove enamel finish, in 3 m bars, with a color similar to RAL9005 (jet black). This steel pipe is used for increased mechanical requirements. The advantages are the high pressure resistance and temperature resistance. This product is suitable for laying cables with functional integrity (E30/ E60/ E90) and has been tested in the system.0605 DIN EN 61386-21 Classification: 44561 Minimum compressive strength: 1250N/5cm

Property Value
Outer diameter: 20 mm
Inner diameter: 17.3 mm
Material: Steel
Material quality: Steel (rolled mild steel)
Surface: painted
Quality of surface coating: other
Surface polished: no
Surface brushed: no
Surface mounted: yes
Suitable for concrete installation: yes
Machinery and plant installation: yes
Underfloor installation (bitumen, hot asphalt): yes
Underfloor installation (screed): yes
Installation outdoors: no
Installation on wood: yes
Operating temperature: -45 to 250 °C
Color: black

Characteristics

Inner diameter17.3 mm
Minimal order30 meters
HAN20310020
GTIN4013960165876
Outer diameter20 mm
Operating temperature-45 to 250 °C
ColorBlack
SurfacePainted
Brushed surfaceNo
MaterialSteel
Material qualitySteel (mild steel rolled)
