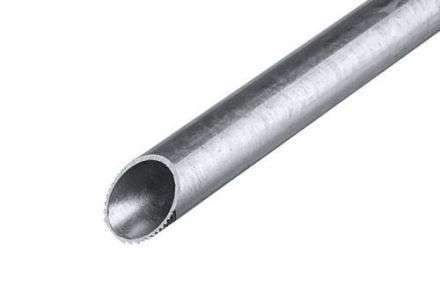

Fränkische Rohrwerke 20410025 Staro thread ES-V 25 hot-dip galvanized steel pipe

In stock
SKU: 1032330
€14.35
Into a basketIn the basketGo

Overview

Staro threaded ES-V is a very heavy galvanized steel pipe made of rolled mild steel with a zinc coating in accordance with EN ISO 1461, in 3m lengths, with a thread on both sides and a screwed-on socket on one side (SM-EV). This steel pipe is used for extreme mechanical requirements and fixed connections, as well as for outdoor installation. The advantages are the very high pressure resistance, temperature resistance and corrosion protection. This product is suitable for laying cables with functional integrity (E30/ E60/ E90) and has been tested in the system.0605 DIN EN 61386-21 Classification: 55571 Minimum compressive strength: 4000N/5cm

Property Value
Outer diameter: 25 mm
Inner diameter: 21.3 mm
Material: Steel
Material quality: Steel (rolled mild steel)
Surface: hot-dip galvanized
Quality of surface coating: other
Surface polished: no
Surface brushed: no
Surface mounted: yes
Suitable for concrete installation: yes
Machinery and plant installation: yes
Underfloor installation (bitumen, hot asphalt): yes
Underfloor installation (screed): yes
Installation outdoors: yes
Installation on wood: yes
Operating temperature: -45 to 400 °C

Characteristics

Inner diameter21.3 mm
HABStaro thread ES-V 25 hot-dip galvanized
Minimal order3 meter
HAN20410025
GTIN4013960166170
Outer diameter25 mm
Operating temperature-45 to 400 °C
SurfaceGalvanized
Brushed surfaceNo
MaterialSteel
Material qualitySteel (mild steel rolled)
