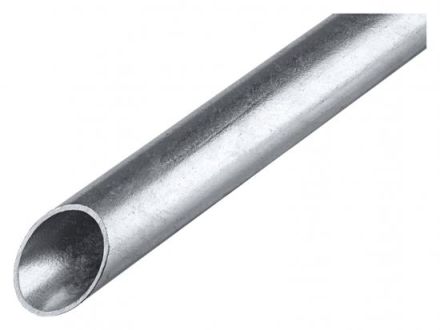

Fränkische Rohrwerke 20510025 FRÄNKISCHE STECK-ES-V M25VERZI. galvanized M25 steel armoured pipe

In stock
SKU: 538669
€10.90
Into a basketIn the basketGo

Overview

Staro Steck-ES-V is a heavy galvanized steel pipe made of rolled mild steel with a zinc coating in accordance with EN ISO 1461, in 3m bars. This steel pipe is used for increased mechanical requirements and for outdoor installations. The advantages are the high pressure resistance, temperature resistance and corrosion protection. This product is suitable for laying cables with functional integrity (E30/ E60/ E90) and has been tested in the system.0605 DIN EN 61386-21 Classification: 44571 Minimum compressive strength: 1250N/5cm

Property Value
Outer diameter: 25 mm
Inner diameter: 22.1 mm
Material: Steel
Material quality: Steel (rolled mild steel)
Surface: hot-dip galvanized
Quality of surface coating: other
Surface polished: no
Surface brushed: no
Surface mounted: yes
Suitable for concrete installation: no
Machinery and plant installation: yes
Underfloor installation (bitumen, hot asphalt): yes
Underfloor installation (screed): yes
Installation outdoors: yes
Installation on wood: yes
Operating temperature: -45 to 400 °C

Characteristics

Inner diameter22.1 mm
Minimal order30 meters
HAN20510025
GTIN4013960166590
Outer diameter25 mm
Operating temperature-45 to 400 °C
SurfaceGalvanized
Brushed surfaceNo
MaterialSteel
Material qualitySteel (mild steel rolled)
