Fränkische Rohrwerke 20910020 FRÄNKISCHE ALU STECK ES M20 Aluminium plug-in pipe M20

In stock
SKU: 538672
€4.57
Into a basketIn the basketGo

Overview

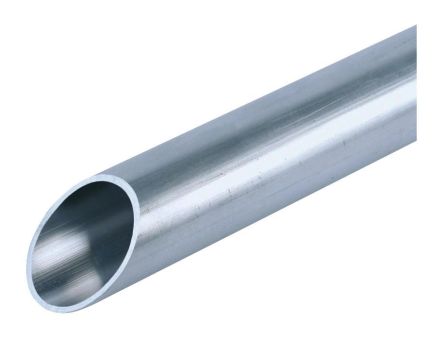

Alu Steck-ES is a heavy, extruded aluminum plug-in tube, in 3m lengths. This aluminum tube is used for increased mechanical requirements and for outdoor installations. The advantages are the high compressive strength and the low weight.0605 DIN EN 61386-21 Minimum compressive strength: 1250N/5cm

Property Value
Outer diameter: 20 mm
Inner diameter: 17.5 mm
Material: Aluminium
Material quality: other
Surface: untreated
Quality of surface coating: uncoated
Surface polished: no
Surface brushed: no
Surface mounted: yes
Suitable for concrete installation: no
Machinery and plant installation: yes
Underfloor installation (bitumen, hot asphalt): yes
Underfloor installation (screed): no
Outdoor installation: yes
Installation on wood: yes
Operating temperature: -45 to 250 °C

Characteristics

Inner diameter17.5 mm
Minimal order30 meters
HAN20910020
GTIN4013960176070
Outer diameter20 mm
Operating temperature-45 to 250 °C
SurfaceUntreated
Brushed surfaceNo
MaterialAluminum
Material qualityOther
