Fränkische Rohrwerke 21010063 ALU thread ES 63 aluminum threaded pipe

In stock
SKU: 1032487
€51.55
Into a basketIn the basketGo

Overview

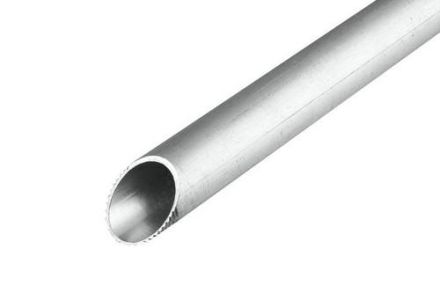

Alu thread-ES is a very heavy, extruded aluminum threaded pipe, in 3m lengths, with a thread on both sides and a screwed-on sleeve on one side (AMG-E). This aluminum pipe is used for high mechanical requirements and for outdoor installation. The advantages are the very high compressive strength and the low weight.0605 DIN EN 61386-21Minimum compressive strength: 4000N/5cm

Property Value
Outer diameter: 63 mm
Inner diameter: 58.8 mm
Material: Aluminium
Material quality: other
Surface: untreated
Quality of the surface coating: uncoated
Surface polished: no
Surface brushed: no
Surface mounted: yes
Suitable for concrete installation: no
Machinery and plant installation: yes
Underfloor installation (bitumen, hot asphalt): yes
Underfloor installation (screed): no
Installation in Outdoors: yes
Installation on wood: yes
Operating temperature: -45 to 250 °C

Characteristics

Inner diameter58.8 mm
HABALU thread ES 63
Minimal order15 meters
HAN21010063
GTIN4013960183795
Outer diameter63 mm
Operating temperature-45 to 250 °C
SurfaceUntreated
Brushed surfaceNo
MaterialAluminum
Material qualityOther
