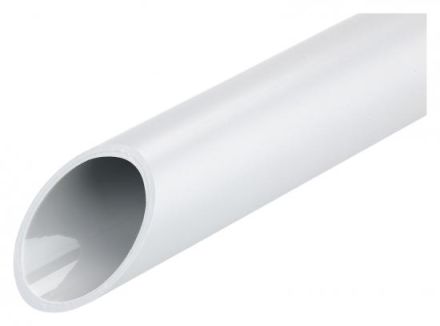

Fränkische Rohrwerke 23210040 FRÄNKISCHE FPKU-EMF-HO M40 plastic pipe M40

In stock
SKU: 538600
€14.35
Into a basketIn the basketGo

Overview

FPKu-EM-F-H0 is a medium-sized plastic pipe made of special plastic, in grey (RAL 7035), non-flame-spreading, in 3m lengths, with a sleeve molded onto one side. This plastic pipe is used for surface-mounted installation in industrial and plant construction as well as for all standard surface-mounted applications. The advantage is that it is halogen-free, as this means that no dangerous toxic and corrosive gases are produced. This product is suitable for laying cables with functional integrity (E30/ E60/ E90) and has been tested in the system.0605 DIN EN 61386-22 100% halogen-free according to DINV 0604-2-100 Minimum compressive strength: 750N/5cm

Property Value
Outer diameter: 40 mm
Inner diameter: 35.5 mm
Highly slippery inner layer: no
Material: other
With sleeve: yes
Color: gray
Halogen-free: yes
Flame-retardant version: yes
Bending behavior: rigid
Surface-mounted: yes
On wood: yes
Hollow wall: yes
Suitable for concrete installation: yes
Machinery and plant installation: yes
Underfloor installation (screed): yes
Installation outdoors: no
Laying in the ground: no
Operating temperature: -45 to 90 °C
RAL number: 7035

Characteristics

Inner diameter35.5 mm
Bending behaviorRigid
Minimal order21 meters
HAN23210040
GTIN4013960180473
Outer diameter40 mm
Operating temperatur-45 to 90 °C
ColorGray
Halogen freeYes
RAL number7035
MaterialOther
