Fränkische Rohrwerke 25410020 FFKuS-ES-F-UV 20 highspeed black UV-stable plastic armored pipe

In stock
SKU: 537542
€4.95
Into a basketIn the basketGo

Overview

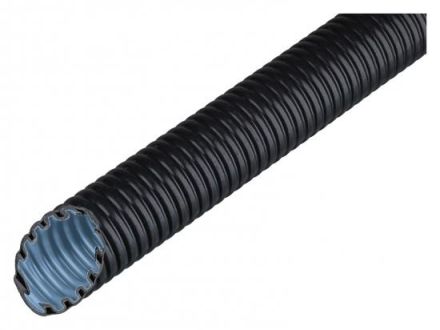

FFKuS-ES-F-UV Highspeed is a heavy plastic corrugated pipe made of modified PVC, with a highly slippery inner layer, plastic sheath, black in color, non-flame propagating. This plastic corrugated pipe is used for installation outdoors, in concrete and in the ground. The advantages are the heavy pressure resistance and the highly slippery inner layer. This allows cables and lines to be pulled in over long distances without any problems. The only flexible plastic corrugated pipe with heavy pressure resistance. UV-stable for up to 10 years.0605 DIN EN 61386-22 Minimum compressive strength: 1250N/5cm

Property Value
Outer diameter: 20 mm
Inner diameter: 13.7 mm
Highly slippery inner layer: yes
Material: Polyvinyl chloride (PVC)
With sleeve: no
Color: black
Halogen-free: no
Flame-retardant version: yes
Bending behavior: flexible
Surface-mounted: yes
On wood: yes
Hollow wall: yes
Suitable for concrete installation: yes
Machinery and system installation: yes
Underfloor installation (screed): yes
Installation outdoors: yes
Laying in the ground: yes
Operating temperature: -25 to 60 °C
RAL number: 9005

Characteristics

Inner diameter13.7 mm
Bending behaviorFlexibel
HABFFKuS-ES-F-UV 20 highspeed black
Minimal order50 meters
HAN25410020
GTIN4013960178968
Outer diameter20 mm
Operating temperatur-25 to 60 °C
ColorBlack
Halogen freeNo
RAL number9005
MaterialPolyvinyl chloride (PVC)
