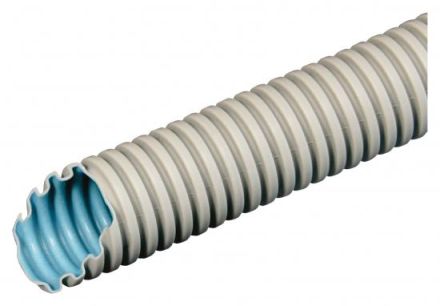

Fränkische Rohrwerke 26230020 FBY-EL-F20 grey high-speed flexible insulating pipe

In stock
SKU: 538426
€0.72
Into a basketIn the basketGo

Overview

FBY-EL-F Highspeed is a lightweight plastic corrugated pipe with a highly slippery inner layer made of polyolefin, non-flame propagating, in grey. This plastic corrugated pipe is used for concealed installation, cavity wall and screed installation. The advantage lies in the highly slippery inner layer in types 20 and 25. This allows cables and lines to be pulled over longer distances without any problems.VDE 0605DIN EN 61386-22Minimum compressive strength: 320 N/5 cm

Property Value
Outer diameter: 20 mm
Inner diameter: 14.9 mm
Highly slippery inner layer: yes
Material: Polyethylene (PE)
With sleeve: no
Color: gray
Halogen-free: no
Flame-retardant version: yes
Bending behavior: flexible
Surface-mounted: yes
On wood: yes
Hollow wall: yes
Suitable for concrete installation: no
Machinery and system installation: no
Underfloor installation (screed): yes
Installation outdoors: no
Laying in the ground: no
Operating temperature: -15 to 90 °C
RAL number: 7035

Characteristics

Inner diameter14.9 mm
Bending behaviorFlexibel
HABFBY-EL-F20 grey highspeed
Minimal order100 meters
HAN26230020
GTIN4013960179217
Outer diameter20 mm
Operating temperatur-15 to 90 °C
ColorGray
Halogen freeNo
RAL number7035
MaterialPolyethylene (PE)
