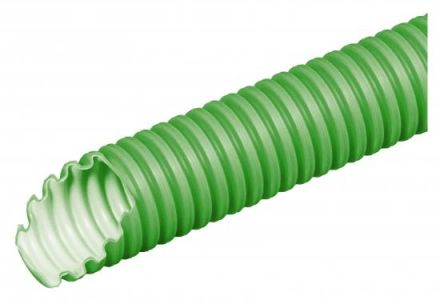

Fränkische Rohrwerke 26250020 FBY-EL-F20 green high-speed flexible insulating pipe

In stock
SKU: 538448
€0.71
Into a basketIn the basketGo

Overview

FBY-EL-F Highspeed is a lightweight plastic corrugated pipe with a highly slippery inner layer made of polyolefin, non-flame propagating, in green. This plastic corrugated pipe is used for concealed plaster, cavity wall and screed installation. The advantage lies in the highly slippery inner layer in types 20 and 25. This allows cables and lines to be pulled over longer distances without any problems. VDE 0605, DIN EN 61386-22, minimum compressive strength: 320 N/5 cm

Property Value
Outer diameter: 20 mm
Inner diameter: 14.9 mm
Highly slippery inner layer: yes
Material: Polyethylene (PE)
With sleeve: no
Color: green
Halogen-free: no
Flame-retardant version: yes
Bending behavior: flexible
Surface-mounted: yes
On wood: yes
Hollow wall: yes
Suitable for concrete installation: no
Machines and System installation: no
Underfloor installation (screed): yes
Installation outdoors: no
Laying in the ground: no
Operating temperature: -15 to 90 °C
RAL number: 6017

Characteristics

Inner diameter14.9 mm
Bending behaviorFlexibel
HABFBY-EL-F20 green high speed
Minimal order100 meters
HAN26250020
GTIN4013960179354
Outer diameter20 mm
Operating temperatur-15 to 90 °C
ColorGreen
Halogen freeNo
RAL number6017
MaterialPolyethylene (PE)
