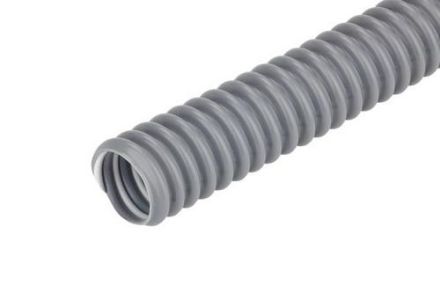

Fränkische Rohrwerke 28120048 FFKSS-SW 48 grey UV 10m ring plastic spiral hose

Fränkische Rohrwerke 28120048 FFKSS-SW 48 grey UV 10m ring plastic spiral hose

In stock

SKU: 1032558

Price on request

€418.61

€0

Into a basketIn the basketGo

Overview

FFKSS-SW plastic spiral hose made of PVC-P with spring steel wire plastic-coated. It is used in mechanical and plant engineering.

Property	Value
Nominal size in inches:	other
Approval according to CSA:	no
Approval according to DIN EN 61386-23:	no
Nominal diameter:	48 mm
Inner diameter:	48 mm
Outer diameter:	56 mm
Material of Spiral:	plastic-coated spring steel
Operating temperature:	-25 to 60 °C
Bending radius, static:	56 mm
UV-resistant:	yes
Halogen-free:	no
Smooth inside:	no
Smooth outside:	no
Flexibility:	very flexible
Color:	gray
Approval according to UR:	no
Approval according to N:	no
Material:	Polyvinyl chloride (PVC)
Protection class (IP):	IP54
Sheathing material:	without sheathing

Characteristics

Inner diameter48 mm

Bending radius, static56 mm

HABFFKSS-SW 48 grey UV 10m ring

Manufacturer

HAN28120048

GTIN4013960223231

Outer diameter56 mm

Operating temperature-25 to 60 °C

Color

Halogen freeNo

Nominal diameter48 mm

Nominal size in inchesOther

IP protection)IP54

UV-resistantYes

MaterialPolyvinyl chloride (PVC)
