Fränkische Rohrwerke 4870021242 MC-GAAR-212.10 (10m ring) AD: 15mm metal protection hose

In stock
SKU: 1032596
€7.07
Into a basketIn the basketGo

Overview

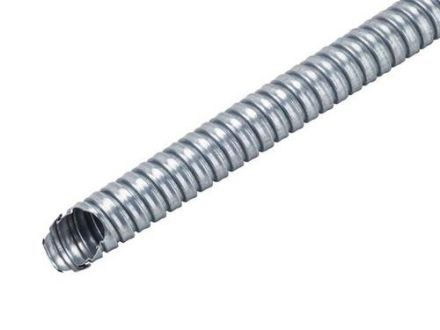

FIPMETAL® metal protection hose GAAR made of galvanized steel with special clamping. It offers a high level of mechanical protection. It is used in mechanical and plant engineering.

Property Value
Nominal diameter: 12 mm
Surface: galvanized
Sheathing material 1st layer: without sheath
Sheathing material 2nd layer (outer): without sheath
Nominal size in inches: other
Inner diameter: 12 mm
Outer diameter: 15 mm
Seal: without seal
Compressive strength: 1250 N
Operating temperature: -45 to 250 °C
Tensile strength: 1000 N
Bending radius, static: 40 mm
Weight: 0.165 kg/m
Electrical properties: with conductive properties
Flame propagating: no
Use in Ex areas: no
Approval according to FI: no
With approval according to UL: no
Material: steel
Protection class (IP): IP50
Bending behavior: flexible

Characteristics

Inner diameter12 mm
Use in Ex areaNo
Bending radius, static40 mm
Bending behaviorFlexibel
Flame propagatingNo
HABMC-GAAR-212.10 (10m ring) OD: 15mm
Minimal order10 meters
HAN4870021242
GTIN4013960396713
Outer diameter15 mm
Operating temperature-45 to 250 °C
Weight0.165 kg/m
Nominal diameter12 mm
Nominal size in inchesOther
SurfaceGalvanized
IP protection)IP50
MaterialSteel
