Fränkische Rohrwerke 4870022142 MC-GAAR-221.10 (10m ring) AD: 23.5mm metal protection hose

In stock

SKU: 1032598

Price on request

€8.91

€0

Overview

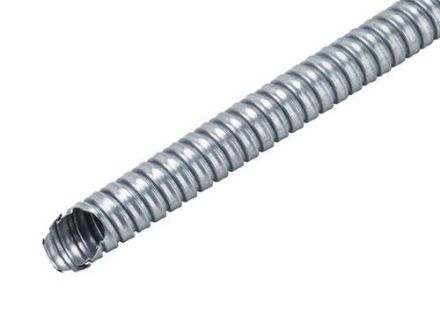

FIPMETAL® metal protection hose GAAR made of galvanized steel with special clamping. It offers a high level of mechanical protection. It is used in mechanical and plant engineering.

Property	Value
Nominal diameter:	20.5 mm
Surface:	galvanized
Sheathing material 1st layer:	without sheath
Sheathing material 2nd layer (outer):	without sheath
Nominal size in inches:	other
Inner diameter:	20.5 mm
Outer diameter:	23.5 mm
Seal:	without seal
Compressive strength:	1250 N
Operating temperature:	-45 to 250 °C
Tensile strength:	1000 N
Bending radius, static:	50 mm
Weight:	0.272 kg/m
Electrical properties:	with Conductive properties
Flame propagating:	no
Use in Ex areas:	no
Approval according to FI:	no
With approval according to UL:	no
Material:	steel
Protection class (IP):	IP50
Bending behavior:	flexible
