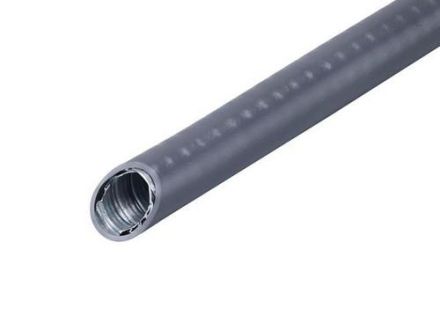

Fränkische Rohrwerke 4870921212 MC-DMC-212-PVC.10 metal protection hose

In stock
SKU: 1032650
€11.16
Into a basketIn the basketGo

Overview

FIPMETAL® metal protection hose with PVC sheath DMC-PVC made of galvanized steel with special clamping and a reinforced smooth PVC layer. It offers high mechanical protection and protects against industrial oils and acids. It is used in mechanical and plant engineering.

Property Value
Nominal diameter: 12 mm
Surface: galvanized
Sheathing material 1st layer: without sheath
Sheathing material 2nd layer (outer): Polyvinyl chloride (PVC)
Nominal size in inches: other
Inner diameter: 12 mm
Outer diameter: 18 mm
Seal: without seal
Compressive strength: 1250 N
Operating temperature: -15 to 60 °C
Tensile strength: 1000 N
Bending radius, static: 60 mm
Weight: 0.295 kg/m
Color: gray
Electrical properties: with conductive and insulating properties
Flame propagating: no
Use in Ex areas: no
Approval according to FI: no
With approval according to UL: yes
Material: steel
Protection class (IP): IP67
Bending behavior: flexible

Characteristics

Inner diameter12 mm
Use in Ex areaNo
Bending radius, static60 mm
Bending behaviorFlexibel
Flame propagatingNo
HABMC-DMC-212-PVC.10
Minimal order10 meters
HAN4870921212
GTIN4013960396546
Outer diameter18 mm
Operating temperature-15 to 60 °C
ColorGray
Weight0.295 kg/m
Nominal diameter12 mm
Nominal size in inchesOther
SurfaceGalvanized
IP protection)IP67
MaterialSteel
