Fränkische Rohrwerke 4870921612 MC-DMC-216-PVC.10 metal protection hose

In stock

SKU: 1032651

Price on request

€12.20

€0

Overview

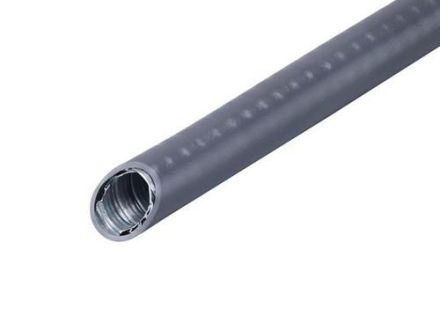

FIPMETAL® metal protection hose with PVC sheath DMC-PVC made of galvanized steel with special clamping and a reinforced smooth PVC layer. It offers high mechanical protection and protects against industrial oils and acids. It is used in mechanical and plant engineering.

Property	Value
Nominal diameter:	15.5 mm
Surface:	galvanized
Sheathing material 1st layer:	without sheath
Sheathing material 2nd layer (outer):	Polyvinyl chloride (PVC)
Nominal size in inches:	other
Inner diameter:	15.5 mm
Outer diameter:	21.5 mm
Seal:	without seal
Compressive strength:	1250 N
Operating temperature:	-15 to 60 °C
Tensile strength:	1000 N
Bending radius, static:	70 mm
Weight:	0.355 kg/m
Color:	grey
Electrical properties:	with conductive and insulating properties
Flame-spreading:	no
Use in Ex areas:	no
Approval according to FI:	no
With approval according to UL:	yes
Material:	steel
Protection class (IP):	IP67
Bending behavior:	flexible
