Fränkische Rohrwerke 4961150046 MS-227-50046.5 Metal screw connection

Fränkische Rohrwerke 4961150046 MS-227-50046.5 Metal screw connection

In stock

SKU: 1032661

Price on request

€25.52

€0

Overview

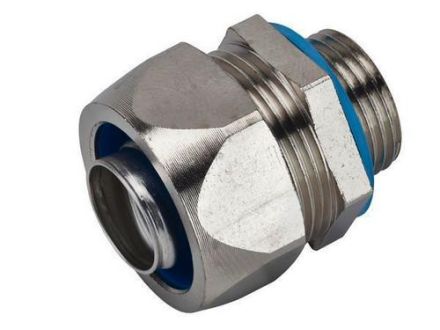

FIPMETAL® metal screw connection straight MS-2-M made of nickel-plated brass, with metric thread, protection class IP67. Sealing rings for FIPMETAL® metal protective hoses GAAR (white), DMA (yellow) and DMC (blue) are included.

Property	Value
Protection class (IP) depending on hose:	67
Nominal diameter:	26.5 mm
Largest outside diameter of the hose:	33 mm
Smallest inside diameter of the hose:	26.5 mm
Thread connection size:	M32 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	44 mm
Total height:	45 mm
Thread length:	11 mm
Rotatable thread:	no
Nominal size in inches:	other
Design:	straight
Construction:	external thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-45 to 120 °C
Thread type:	metric
Connection type of the screw connection to the housing:	thread
Number of entries:	1
With earth connection:	no
