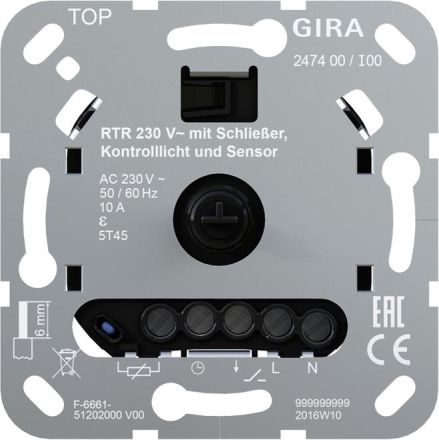

Gira 247400 RTR 230 V normally open control FBH insert

In stock
SKU: 890689
€75.93
Into a basketIn the basketGo

Overview

Insert room temperature controller 230 V~ 10 A with normally open contact, control light and sensor for electric underfloor heating Features: Electronic temperature controller for controlling electric underfloor heating or underfloor temperature control systems. Control of the floor temperature in closed rooms. Manually switch off the floor temperature control. Input terminal for activating the reduced temperature (ECO) via central clock. External temperature sensor (remote sensor). Frost protection function. Output signal: Pulse width modulation (PWM) or two-point control (on off). Heating interruption for 5 minutes after one hour of continuous heating. Setting range of the room temperature can be restricted with setting rings. Notes: Lay the remote sensor in the floor in the empty pipe. The supply line to the remote sensor can be extended to 50 m with a 2-core cable (2 x 1.5 mm 2).

Property Value
Type of power supply: 230 V AC
Mounting type: Flush-mounted
Protection class (IP): IP20
Heating: yes
Number of heating outputs: 1
With display: no
Operation: Rotary
Color: Other
Design: Brand-specific
Connection: Three-/four-wire
Thermal feedback: Without
Control characteristics: PID
Temperature readable: No
With noise level display: No
Sensor design: Resistance sensor
With drinking water circuit: no
Max. voltage of contacts: 230 V
Explosion-proof: no
Power consumption in standby mode (solstandby): 0.5 W

Characteristics

OperationTurn
Sensor/sensor designResistance sensor
Temperature can be readNo
HAB247400 RTR 230 V normally open control FBH
ManufacturerGIRA
HAN247400
GTIN4010337104407
VersionBranded
Explosion-proofNo
ColorOther
With displayNo
Mounting typeFlush-mounted
IP protection)IP20
Gira 247400 RTR 230 V normally open control FBH insert
Gira 247400 RTR 230 V normally open control FBH insert
