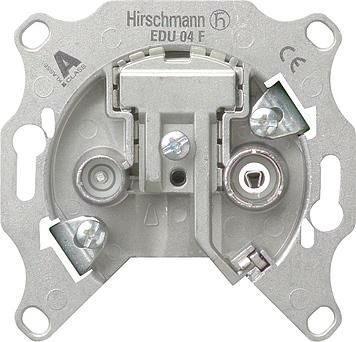

Insert antenna socket (EDU 04 F) Features: Can be used as a single socket. The complete signal spectrum from 4 to 2400 MHz is available at both connections. The TV connection can be used to transmit direct current (max. DC 24 V 500 mA) to a satellite antenna. Notes: Only for screw fastening. Attention! Pay attention to the installation space for the plug and bending radii. When using with couplings, note: Not suitable for duct installation and standard device sockets. Connection with angle plugs recommended. Installation recommendation: Kaiser electronic sockets Flush-mounted installation: Kaiser Order No.: 1068-02 Hollow wall installation: Kaiser Order No.: 9062-94 Concrete installation: Kaiser Order No.: 1268-40 For use in individual antenna systems and for community antenna systems, BK and satellite house distribution systems on decoupled stub lines.
