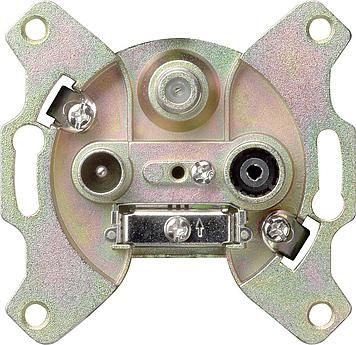

Use of antenna socket (FS 302 F) Features: Can be used as a terminal box with three connections. Use in individual antenna systems, behind a multi-switch or on a decoupled stub line. The connection for the satellite receiver is designed as an F socket. This can also be used to transmit direct current (max. DC 24 V 500 mA) to a satellite antenna. Notes: Only for screw fastening. Attention! Pay attention to the installation space for the plug and bending radii. When using with couplings, note: Not suitable for duct installation and standard device sockets. Connection with angle plugs recommended. Installation recommendation: Kaiser electronic boxes Flush-mounted installation: Kaiser Order No.: 1068-02 Hollow wall installation: Kaiser Order No.: 9062-94 Concrete installation: Kaiser Order No.: 1268-40
