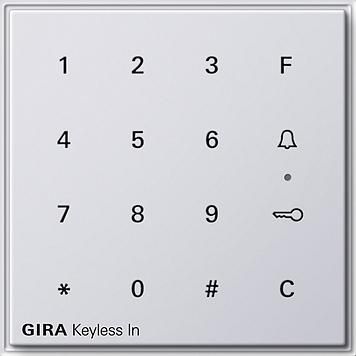

Gira Keyless In code keypad pure white Features: Installation in a device box. Stand-alone device or in combination with the Gira door communication system. In stand-alone operation, use of the integrated potential-free relay contacts for switching operations, e.g. for door openers with their own power supply (e.g. commercially available bell transformer). Commissioning through direct configuration without a PC or programming software. Inputs and outputs: Switching contact: Two relays with potential-free changeover contacts, load capacity AC DC 24 V 1.6 A. Two connections for power supply. Code keypad as access control system with capacitive and therefore wear-free keypad. No noticeable wear on frequently used number combinations. Stand-alone device or in combination with the Gira door communication system as a door call system for buildings with several residential units. Special key 'C': Deletes an incorrect entry. Special key 'Key': Direct door opening after correct code entry. Special key 'Bell': Targeted selection of home stations in large buildings. Special key 'F': Switching functions with switching actuators of the Gira door communication system. Homogeneous blue LED lighting of the numbers and special characters at night. Master PIN number on the enclosed sealed security card in case the administrator PIN number is lost. The code keypad can manage up to 255 codes. Up to 32-digit codes possible. Acoustic feedback when a button is pressed. 3-color LED status display when programming and during operation. Warning tone if the keypad attachment is removed without authorization to detect sabotage. Sabotage circuit with switching actuator in the Gira door communication system. Two different codes can be assigned to the two integrated changeover relays, e.g. Code 1: door opening, Code 2: switching the outside light. Inputs and outputs: Plug strip connection cable for the Gira door communication system. Notes: The TKS-IP gateway can be used to connect the Keyless In devices to the Gira HomeServer. This enables intelligent links. For example, For example, temporary or one-time access authorizations can be granted very easily. All data, including access authorizations, can then be managed centrally and flexibly via the Gira HomeServer. When integrating into the stainless steel Series 20 21 switch range, the 55 x 55 mm adapter frame is required. Integration into Profile 55 is possible. The Gira AppShop is the marketplace for interesting solutions and applications in intelligent building technology. More than 200 apps are now available there, including application descriptions, plugins, function templates, logic modules and sample projects. Discover applications for the Gira Keyless In keypad now. www.appshop.gira.de.
