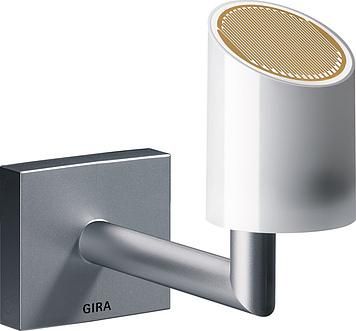

KNX weather station standard Features: Standard weather station for measuring and evaluating weather data (wind speed, precipitation, twilight, temperature and brightness). Installation outside of buildings, preferably on the roof. Temperature sensor for measuring the outside temperature. Wind sensor (thermal) for determining the wind speed. Twilight sensor for measuring the brightness in the twilight area. Three brightness sensors offset by 90° determine the brightness in daylight and sunshine, depending on the direction. Rain sensor for detecting precipitation. A teach-in function enables a current measured value to be adopted as a limit value. This can be done e.g. B. can be triggered by pressing an external button. Two limit values with adjustable hysteresis per sensor (except rain sensor) can be parameterized. All limit value objects have a parameterizable on and off delay. Six logic gates (AND, AND with feedback, OR, exclusive OR, NAND, NOR) with up to four inputs for external and internal 1-bit values. Four locking elements for blocking functions or manual operation. Cyclic sending when the value changes. Notes: Direct sunlight can affect the temperature measurement.
