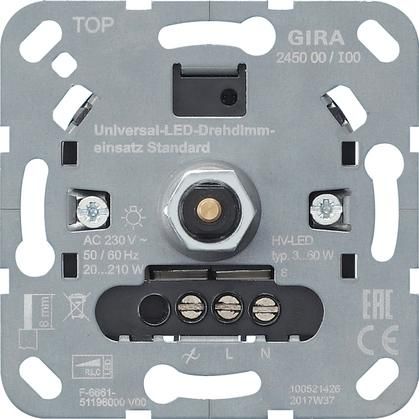

Uni-LED rotary dimmer. Standard insert [2450 00] Universal LED rotary dimming insert Standard Switching, pressing, dimming Features: - Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps. - Installation in device box according to DIN49073. - Automatic setting of the dimming principle suitable for the load (leading edge or trailing edge). - Lamp-friendly switching on. - Switch-on brightness can be saved permanently. - Switch-on with last set brightness or saved switch-on brightness. - Minimum brightness adjustable. - Electronic short-circuit protection. - Electronic overtemperature protection. - Operation with and without neutral conductor connection. Technical specifications: Nominal voltage: AC230V, 50/60Hz Stand-by: max. 0.35W Connected load at 25°C: - HV-LED lamps: typically 3 to 60W - Compact fluorescent lamp: typically 3 to 60W - Incandescent lamps: 20 to 210W - HV halogen: 20 to 210W - Gira Tronic transformers: 20 to 210W - electronic transformer with NV-LED: typically 20 to 60W - wound transformer: 20 to 210VA - wound transformer with NV-LED: typically 20 to 60VA Cable length: - Load: max. 100m Installation depth: 24 mm Ambient temperature: -5 °C to +45 °C Notes: - In principle, the dimmer can be operated without connecting the neutral conductor, but some LED and CFLi lamps require the neutral conductor to be connected to avoid flickering. - When operating without a neutral conductor, the minimum load for incandescent lamps, HV halogen, Gira Tronic transformers and wound transformers increases to 50W. - Do not connect HV LED or compact fluorescent lamps in combination with power boosters. - Electronic transformers and ballasts for LED lamps can be operated using the dimming method specified by the manufacturer. - If the voltage is higher, the minimum load for incandescent lamps, HV halogen, Gira Tronic transformers and wound transformers increases to 50W. - In combination with power boosters, do not connect HV LED or compact fluorescent lamps. - Electronic transformers and ballasts for LED lamps can be operated using the dimming method specified by the manufacturer. - If the voltage is higher, the minimum load for incandescent lamps, HV halogen, Gira Tronic transformers and wound transformers increases to 50W. If the ambient temperature is higher than 25°C, the connected load must be reduced. Manufacturer: Gira Order no. 2450 00
