Gira 5373005 S3000 1.10m Standard System 55sw motion detector

In stock
SKU: 429304
€54.69
Into a basketIn the basketGo

Overview

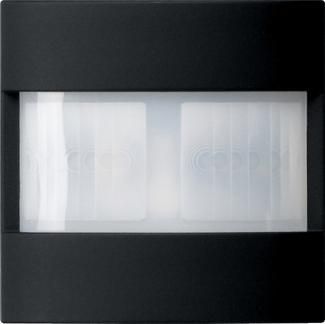

System 3000 motion detector attachment 1.10 m Standard System 55 Matt black Features: - Automatic switching of lighting, depending on heat movement and ambient brightness. - Operation with System 3000 switching, dimming or extension insert 3-wire. - Extension of the detection area in combination with 3-wire extension insert. - Adjustable brightness threshold. - Sensitivity can be set in four levels. - If a System 3000 extension insert with operating attachment or mechanical button is connected to the main unit, the lighting can be switched on or dimmed for the duration of the run-on time. With System 3000 dimming insert: - Switch on with the last set brightness or saved switch-on brightness. - The switch-on brightness can only be saved permanently using the System 3000 extension insert with operating attachment. Notes: - The detection field is aligned horizontally and may not be limited when used outdoors. Therefore, make sure that the installation location is suitable for outdoor use or use the 2.20 m motion detector attachment.

Property Value
Installation height: 1.10 m
Installation type: Flush-mounted
Design: Motion detector
Adjustable response sensitivity: yes
Horizontal detection angle: 180 °
Max. Duty cycle: 2 min
Max. range to one side: 25 m
Max. Frontal range: 40 m
HVAC control: no
Response brightness adjustable: yes
Dimming function with dimming insert: yes
Suitable for protection class (IP): IP20
Color: black
Staircase monitoring: yes
Halogen-free: yes
Animal corridor: yes
Material: Plastic
Material quality: Thermoplastic

Characteristics

ManufacturerGIRA
HAN5373005
GTIN4010337049845
Dimming function with dimming insertYes
Response sensitivity adjustableYes
Response brightness adjustableYes
VersionMotion detector
Detection angle horizontal180°
ColorBlack
Suitable for protection class (IP)IP20
HVAC controlNo
Halogen freeYes
Max. duty cycle2 min
Max. range frontal40m
Max. range to one side25m
Mounting typeFlush-mounted
Animal corridorYes
Staircase monitoringYes
MaterialPlastic
Material qualityThermoplastic
