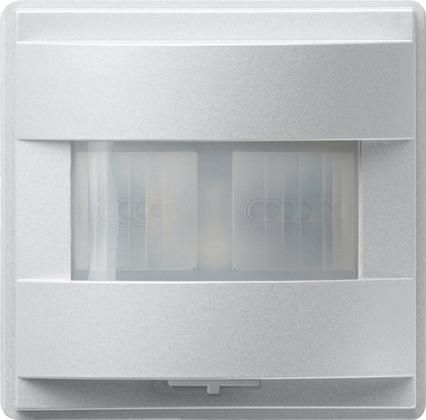

Gira 537466 S3000 motion sensor 1.10 m comfort BT Gira TX_44 (WG UP) pure white

In stock
SKU: 405578
€92.39
Into a basketIn the basketGo

Overview

System 3000 motion detector attachment comfort mounting height up to 1.10 m TX_44 pure white Features: - Automatic switching of lighting, depending on heat movement and ambient brightness. - Operation with System 3000 switching, dimming or extension insert 3-wire. - Extension of the detection area in combination with extension insert 3-wire. - When connecting a System 3000 extension insert with operating attachment or mechanical button to the main unit, the lighting can be switched on or dimmed for the duration of the run-on time. - Switching on and off directly on the attachment. With System 3000 dimming insert: - Switching on with the last set brightness or saved switch-on brightness. - The switch-on brightness can only be saved permanently using the System 3000 extension insert with operating attachment. Functions with the Gira System 3000 app: - Setting the brightness threshold. - Sensitivity of both sensors can be set individually (0, 25, 50, 75, 100%). - Setting the run-on time. - Forced functions: automatic operation, permanent on/off, time-limited on/off. - Presence simulation. - Switch-off advance warning. - Day operation. - Walk test. - Switch on with the last set brightness or saved switch-on brightness in combination with a dimmer insert.

Property Value
Installation height: 1.1 m
Installation type: Flush-mounted
Design: Motion detector
Constant light control: no
Adjustable response sensitivity: yes
Horizontal detection angle: 1 to 180 °
Creep under protection/rear field monitoring: no
Min. duty cycle: 10 s
Max. duty cycle: 30 min
Max. range to one side: 19 m
Max. Frontal range: 32 m
HVAC control: no
Response brightness adjustable: no
Networkable: yes
Teach function for response brightness: no
Dimming function with dimming insert: no
Suitable for protection class (IP): IP44
Suitable for wireless transmission: no
Color: white
Staircase monitoring: yes
Halogen-free: yes
Animal corridor: yes
Material: Plastic
Material quality: Thermoplastic
RAL number (similar): 9010

Characteristics

ManufacturerGIRA
HAN537466
GTIN4010337049586
Dimming function with dimming insertNo
Response sensitivity adjustableYes
Response brightness adjustableNo
VersionMotion detector
Detection angle horizontal1 to 180 °
ColorWhite
Suitable for protection class (IP)IP44
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Constant light controlNo
Max. duty cycle30 min
Max. range frontal32m
Max. range to one side19m
Min. duty cycle10s
Mounting typeFlush-mounted
RAL number (similar)9010
Teach function for response brightnessNo
Animal corridorYes
Staircase monitoringYes
Creep protection/rear field monitoringNo
NetworkableYes
MaterialPlastic
Material qualityThermoplastic
