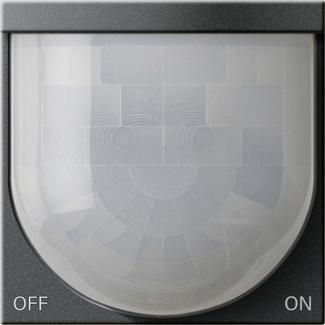

Gira 537528 S3000 moving unit 2.20 m Standard System 55 Anthracite

In stock
SKU: 405584
€51.70
Into a basketIn the basketGo

Overview

System 3000 motion detector attachment Standard mounting height up to 2.20 m System 55 Anthracite Features: - Automatic switching of lighting, depending on heat movement and ambient brightness. - Operation with System 3000 switching, dimming or extension unit insert 3-wire. - Extension of the detection area in combination with extension unit insert 3-wire. - Adjustable brightness threshold. - Sensitivity adjustable in four levels. - When a System 3000 extension unit insert with operating attachment or mechanical button is connected to the main unit, the lighting can be switched on or dimmed for the duration of the follow-up time. With System 3000 dimming insert: - Switch on with last set brightness or saved switch-on brightness. - The switch-on brightness can only be saved permanently using a System 3000 extension insert with operating attachment.

Property Value
Installation height: 2.2 m
Installation type: Flush-mounted
Design: Motion detector
Constant light control: no
Adjustable response sensitivity: yes
Horizontal detection angle: 1 to 180 °
Creep under protection/rear field monitoring: no
Max. duty cycle: 2 min
Max. range to one side: 3 m
Max. Frontal range: 12 m
HVAC control: no
Response brightness adjustable: no
Networkable: no
Teach function for response brightness: no
Suitable for protection class (IP): IP20
Suitable for wireless transmission: no
Color: anthracite
Staircase monitoring: yes
Halogen-free: yes
Animal corridor: no
Material: Plastic
Material quality: Thermoplastic

Characteristics

ManufacturerGIRA
HAN537528
GTIN4010337051176
Response sensitivity adjustableYes
Response brightness adjustableNo
VersionMotion detector
Detection angle horizontal1 to 180 °
Suitable for protection class (IP)IP20
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Constant light controlNo
Max. duty cycle2 min
Max. range frontal12m
Max. range to one side3m
Mounting typeFlush-mounted
Teach function for response brightnessNo
Animal corridorNo
Staircase monitoringYes
Creep protection/rear field monitoringNo
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
