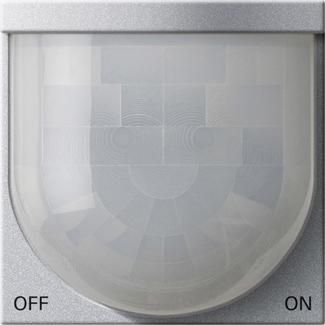

Gira 537626 S3000 motion sensor 2.20 m comfort BT system 55 F aluminum

In stock
SKU: 405590
€87.63
Into a basketIn the basketGo

Overview

System 3000 motion detector attachment 2, 20 m Komfort BT System 55 Color aluminum Features: Automatic switching of lighting, depending on heat movement and ambient brightness. Operation with System 3000 switching, dimming or extension insert 3-wire. Extension of the detection area in combination with extension insert 3-wire. When connecting a System 3000 extension insert with operating attachment or mechanical button to the main unit, the lighting can be switched on or dimmed for the duration of the run-on time. Manual switching between automatic, permanent on and permanent off possible on the device. With System 3000 switching insert: short-term operation. With System 3000 dimming insert: switch on with last set brightness or saved switch-on brightness. The switch-on brightness can only be saved permanently using the System 3000 extension insert with operating attachment. Functions with Gira Bluetooth app: setting the brightness threshold. Sensitivity of both sensors can be set individually (0, 25, 50, 75, 100%). Setting the run-on time. Forced functions: Automatic operation, permanent on/off, time-limited on/off for 0.5 to 5 hours. Presence simulation. Switch-off advance warning. Day operation. Walk test. Switch on with the last set brightness or saved switch-on brightness in combination with a dimmer insert.

Property Value
Installation height: 2.2 m
Installation type: Flush-mounted
Design: Motion detector
Constant light control: no
Adjustable response sensitivity: yes
Horizontal detection angle: 1 to 180 °
Creep under protection/rear field monitoring: no
Min. duty cycle: 10 s
Max. duty cycle: 30 min
Max. range to one side: 6 m
Max. Frontal range: 12 m
HVAC control: no
Response brightness adjustable: no
Networkable: no
Dimming function with dimming insert: yes
Suitable for protection class (IP): IP20
Suitable for wireless transmission: no
Color: Aluminum
Staircase monitoring: yes
Halogen-free: yes
Animal corridor: no
Material: Plastic
Material quality: Thermoplastic

Characteristics

ManufacturerGIRA
HAN537626
GTIN4010337050575
Dimming function with dimming insertYes
Response sensitivity adjustableYes
Response brightness adjustableNo
VersionMotion detector
Detection angle horizontal1 to 180 °
Suitable for protection class (IP)IP20
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Constant light controlNo
Max. duty cycle30 min
Max. range frontal12m
Max. range to one side6m
Min. duty cycle10s
Mounting typeFlush-mounted
Animal corridorNo
Staircase monitoringYes
Creep protection/rear field monitoringNo
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
