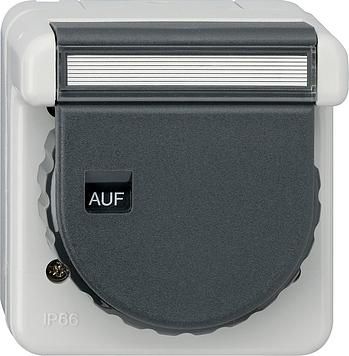

Gira 044031 SCHUKO socket BSF bayonet WD surface-mounted grey

Gira 044031 SCHUKO socket BSF bayonet WD surface-mounted grey

In stock

SKU: 81369

Price on request

€59.21

€0

Into a basketIn the basketGo

Overview

SCHUKO socket 16 A 250 V~ with hinged lid, bayonet lock and label field gray

Notes:
Not suitable for high-pressure cleaners.

Property	Value
Version:	SCHUKO
Number of units:	1
Color:	gray
Suitable for protection class (IP):	IP66
Rated voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	yes
Mounting type:	Surface-mounted
Text field/labeling area:	yes
Ejection mechanism:	no
Halogen-free:	no
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Fastening type:	Fastening with screw
Material:	other
Material quality:	other
Surface:	other
Number of modules (with modular construction):	1
Insulated installation:	no
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact, round:	no
With signal lamp:	no
Antibacterial treatment:	no

Characteristics

Manufacturer

HAN044031

GTIN4010337440314

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

VersionSCHUKO

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP66

Halogen freeNo

Insulated installationNo

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeSurface-mounted

Nominal voltage250V

Rated current16A

SurfaceOther

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialOther

Material qualityOther

Overvoltage protectionNo
