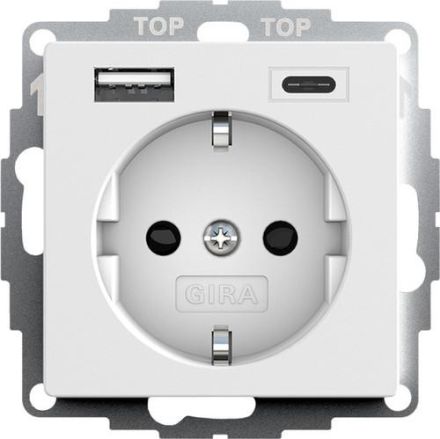

Gira 245927 SCHUKO 2f. System 55 pure white power supply

Gira 245927 SCHUKO 2f. System 55 pure white power supply

In stock

SKU: 833940

Price on request

€57.36

€0

Overview

SCHUKO socket 16 A 250 V~ with shutter and USB power supply 2-way Type A Type C Pure white satin finish Features: Charging option for up to two devices at the same time via USB cable Type A and Type C. Up to two devices can be charged at the same time. Notes: Increased contact protection (Safety Plus) in accordance with DIN0620-1. The housing of the product can heat up during long charging cycles. Use of a deep device socket is recommended.

Property	Value
Version:	SCHUKO
RAL number (similar):	9010
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	230 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	other
Surface finish:	matt
Device width:	71 mm
Device height:	71 mm
Device depth:	32 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	yes
With function lighting:	yes
With orientation lighting:	no
Impact resistance:	IK09
Transparent:	no
Protective contact:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of Phases:	1
Antibacterial treatment:	no
Min. depth of device box:	40 mm

Characteristics

ColorWhite

HAB245927 SCHUKO 2f. System 55 pure white

Manufacturer

HAN245927

GTIN4010337076186

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

VersionSCHUKO

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP20

Device width71 mm

Device height71 mm

Device depth32 mm

Halogen freeYes

Min. depth of the device box40 mm

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingYes

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyYes

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage230V

Rated current16A

SurfaceOther

RAL number (similar)9010

Impact resistanceIK09

Protective contactYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo

Gira 245927 SCHUKO 2f. System 55 pure white power supply

Price on request

€57.36

€0
