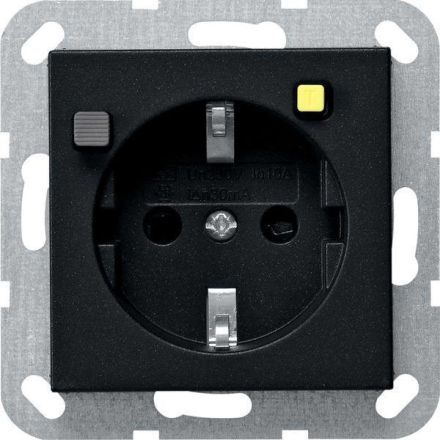

Gira 2677005 30mA SH System 55 black residual current protection socket

Gira 2677005 30mA SH System 55 black residual current protection socket

In stock

SKU: 945265

Price on request

€155.66

€0

Overview

FI protection socket 30 mA with shutterMatte blackFeatures: The FI protection socket is a stationary protective device with voltage-independent residual current release in accordance with 0664. The functional principle corresponds to that of a residual current circuit breaker.Notes: Installation in a deep device box. Increased contact protection (Safety Plus) in accordance with DIN0620-1. Residual current protective devices (RCDs) in a unit with a socket can also provide protection for an adjacent socket (under a common cover), DIN0100-530:2018-06.

Property	Value
Version:	other
Number of units:	1
Color:	black
Suitable for protection class (IP):	IP20
Rated voltage:	230 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	yes
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	other
Surface finish:	matt
Rated residual current:	30 mA
Number of modules (at Modular design):	1
Insulated installation:	no
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With functional lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
With signal lamp:	yes
Antibacterial treatment:	no

Characteristics

ColorBlack

HAB2677005 30mA SH System 55 black

Manufacturer

HAN2677005

GTIN4010337037071

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

VersionOther

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw/screw fastening

Rated residual current30mA

Color

Residual current protectionYes

Frequency50 to 60 Hz

Suitable for protection class (IP)IP20

Halogen freeYes

Insulated installationNo

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampYes

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage230V

Rated current16A

SurfaceOther

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
