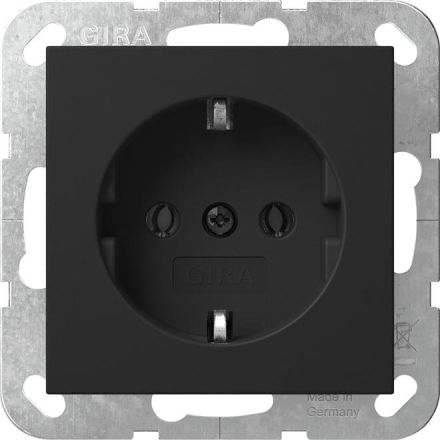

SCHUKO socket 16 A 250 V~ System 55 Black matt Notes: With increased contact pressure of the earthing bracket tested according to TNO
| Property | Value |
| Design: | SCHUKO |
| Number of units: | 1 |
| Color: | black |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | no |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Frequency: | 50 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | other |
| Surface finish: | matt |
| Number of modules (with modular design): | 1 |
| Device width: | 55 mm |
| Device height: | 55 mm |
| Insulated installation: | no |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Round protective conductor contact: | no |
| With signal lamp: | no |
| Antibacterial treatment: | no |
| Min. depth of device box: | 32 mm |
