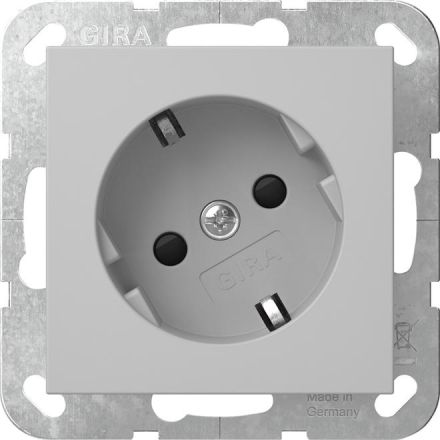

Gira 4418015 30°+SH System 55 gr m SCHUKO socket

Gira 4418015 30°+SH System 55 gr m SCHUKO socket

In stock

SKU: 890419

Price on request

€11.80

€0

Overview

SCHUKO socket 16 A 250 V~ with insert rotated by 30 and shutter system 55, matt grey Features: Especially suitable for angle plugs. Also for use in Gira energy columns and underfloor systems. For screw fastening, without fastening claws. Notes: Increased contact protection (Safety Plus) in accordance with DIN0620-1.

Property	Value
Design:	SCHUKO
Number of units:	1
Color:	gray
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	yes
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	other
Surface finish:	glossy
Number of modules (with modular construction):	1
Device width:	55 mm
Device height:	55 mm
Device depth:	32 mm
Insulated installation:	no
With Loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
With Signal lamp:	no
Antibacterial treatment:	no

Characteristics

HAB4418015 30°+SH System 55 gr m

Manufacturer

HAN4418015

GTIN4010337094937

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

VersionSCHUKO

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP20

Device width55 mm

Device height55 mm

Device depth32 mm

Halogen freeYes

Insulated installationNo

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceOther

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertYes

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
