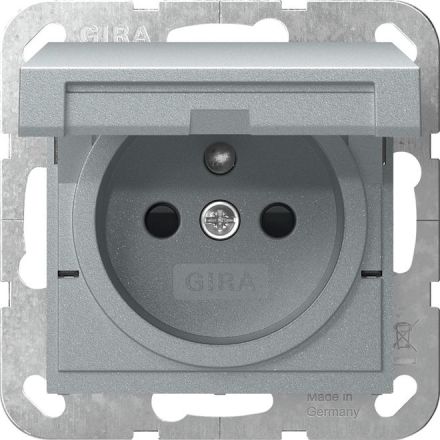

Gira 448826 earth pin KD+SH System 55 F aluminum socket

Gira 448826 earth pin KD+SH System 55 F aluminum socket

In stock

SKU: 890391

Price on request

€16.54

€0

Overview

Socket with earthing pin 16 A 250 V~, hinged lid and shutter system 55, color aluminum Features: With plug-in terminals. Notes: Approved according to NF C 61-314 (2003). Increased contact protection (Safety Plus) according to DIN0620-1. Cover frame (1- to 5-way) from the Standard 55 and Gira E2 switch ranges in conjunction with the sealing set also suitable for the installation of sockets with earthing pin and hinged cover, water-protected IP44.

Property	Value
Version:	other
Number of units:	1
Color:	Aluminum
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	yes
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	screw terminal
With fine fuse:	no
Mounting type:	claw/screw fastening
Material:	plastic
Material quality:	Thermoplastic
Surface:	other
Number of modules (with modular design):	1
Device width:	55 mm
Device height:	55 mm
Insulated installation:	no
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	no
Round protective conductor contact:	yes
Number of active contacts (round):	1
With signal lamp:	no
Antibacterial treatment:	no

Characteristics

HAB448826 Earth pin KD+SH System 55 F Alu

Manufacturer

HAN448826

GTIN4010337095842

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

Number of active contacts (approx.)1

VersionOther

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width55 mm

Device height55 mm

Halogen freeYes

Insulated installationNo

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceOther

Protective contactNo

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
