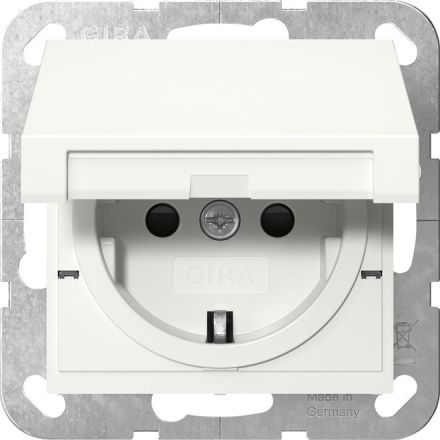

Gira 475403 KD+SH SRK System 55 rws socket SCHUKO

Gira 475403 KD+SH SRK System 55 rws socket SCHUKO

In stock

SKU: 890463

Price on request

€10.82

€0

Overview

SCHUKO socket 16 A 250 V~ with hinged lid and shutterScrew terminalsPure white glossyNotes:- Cover frame (1- to 5-way) from the Standard 55 and Gira E2 switch ranges in conjunction with the sealing set also suitable for the installation of flush-mounted SCHUKO sockets with hinged lid, water-protected IP44.- Increased contact protection (Safety Plus) in accordance with IEC 60884-1.

Property	Value
Version:	SCHUKO
RAL number (similar):	9010
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	230 V
Nominal current:	10 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	yes
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Screw terminal
With fine fuse:	no
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	other
Surface finish:	glossy
Number of modules (with modular design):	1
Device width:	55 mm
Device height:	55 mm
Insulated installation:	no
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
With signal lamp:	no
Antibacterial treatment:	no

Characteristics

HAB475403 KD+SH SRK System 55 rws

Manufacturer

HAN475403

GTIN4010337114178

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

VersionSCHUKO

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP20

Device width55 mm

Device height55 mm

Halogen freeYes

Insulated installationNo

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage230V

Rated current10A

SurfaceOther

RAL number (similar)9010

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
