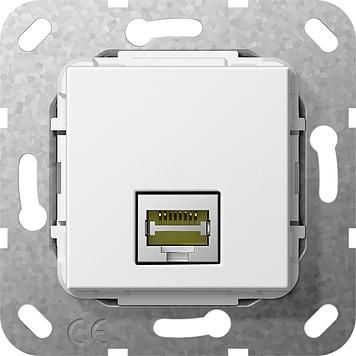

Insert Modular Jack RJ45 Cat.6a 10 Gbit Ethernet coupling, pure white, glossy
Notes:
Only for screw fastening.
Attention! Pay attention to the installation space for the plug and the bending radii.
Installation recommendation: Kaiser electronic boxes, flush-mounted installation: Kaiser Order No.: 1068-02, hollow wall installation: Kaiser Order No.: 9062-94, concrete installation: Kaiser Order No.: 1268-40
When using inserts with couplings, please note: Not suitable for duct installation and standard device boxes. Connection with angle plugs recommended.
| Property | Value |
| Mounting type: | Mounting with screw |
| Color: | white |
| RAL number (similar): | 9010 |
| Labeling field: | without labeling field |
| Use: | Modular jack |
| With dust protection: | no |
| Mounting type: | Flush-mounted |
| Surface: | other |
| With hinged lid: | no |
| Suitable for protection class (IP): | IP20 |
| Composition: | Base element with central cover plate |
| Support ring: | yes |
| With print: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | no |
| With strain relief: | no |
| Lamp terminal: | no |
| Transparent: | no |
