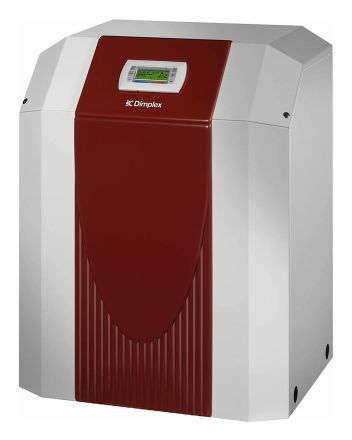

Glen Dimplex 364190 WI 10TU water heat pump

In stock
SKU: 329868
€9,979.23
Into a basketIn the basketGo

Overview

Heating heat pump for indoor installation with integrated WPM EconPlus control. Variable connection options for the groundwater and heating connections on the rear wall of the housing. Integrated structure-borne sound decoupling for direct connection to the heating system. Sound-optimized by encapsulated compressor chamber and freely swinging compressor base plate. High performance figures thanks to electronic expansion valve, COP booster and compliance with the requirements of EN 14511 for larger volume flows on the heat utilization side. A stainless steel spiral evaporator optimized against corrosion and freezing is installed. Sensory monitoring of the cooling circuit for high operational reliability and integrated heat quantity metering (display of the calculated heat quantity for heating and hot water preparation on the WPM EconPlus heat pump manager). If the evaporation temperature is too low, e.g. due to too little water throughput, the heat pump switches off so that no flow switch is required. In well systems with an unreliable water supply, a flow switch available as a special accessory can also be installed. The control unit, which is integrated into a brown-red design panel, can also be used as a wired remote control using the wall mounting set (special accessory MS PGD). Universal design with flexible expansion options for: bivalent or bivalent regenerative operation distribution systems with unmixed and mixed heating circuits soft starter (from WI 14), load contactor for well water pump integrated, flow sensor, return sensor, external sensor (standard NTC-2) and dirt filter for groundwater included in delivery.

Property Value
Nominal heat output: 9.6 kW
Performance data according to: (W10/W35 °C)
Coefficient of performance (COP): 5.9
Energy efficiency class room heating at 35°C: A
can be used for: Heating water
Series: Dimplex WI
Energy source: Water heat, electricity
Maximum flow temperature: 62 °C
Lower temperature limit: 7 °C
Upper temperature limit: 25 °C
Refrigerant: R410A
Refrigerant filling quantity: 2.7 kg
Water connection for heating water: 1 1/4 inch
max. Sound power level indoors: 43 db
Installation location: Indoor installation
Operating voltage: 400 V
Nominal electrical consumption at 35 °C: 1.63 kW
Data transfer: BUS
Additional system requirements for data transfer: BUS system
Operating options: Room thermostat, control on the boiler
Equipment: integrated control unit, integrated heat meter
Package components: Heat pump
Height: 845 mm
Width: 650 mm
Depth: 665 mm
Weight: 142 kg
Standard: DIN (EN) 14511 (heating)
Possible funding program: BAFA heating with renewable energies, BAFA funding for efficient heat pumps, BMWi Market Incentive Programme (MAP), KfW Development Bank
Other: EHPA quality seal (valid until)

Characteristics

EquipmentIntegrated control unit, integrated heat meter
Operating voltage400 V
OtherEHPA quality seal (valid until)
HABWI10TU
ManufacturerGlen Dimplex
HAN364190
GTIN4015627364196
Width650 mm
Weight142 kg
Height845 mm
SeriesDimplex WI
Depth665 mm
