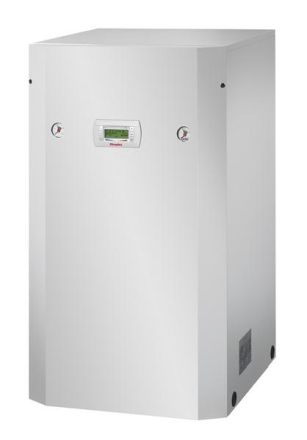

Heating heat pump for indoor installation with integrated heat pump manager WPM Econ5 with touch display. Variable connection options for the brine and heating connections on the rear wall of the housing. Sound-optimized thanks to encapsulated compressor chamber and freely oscillating compressor base plate. High coefficient of performance (COP) through electronic control of the volume flows and optimized heat transfer due to asymmetrically shaped heat exchangers. Integrated brine components enable direct connection of the heat source: Electronically controlled brine circulation pump (note free pressure) Expansion vessel (8 l) Safety valve and pressure gauge Compact design with optional hot water preparation and integrated components for direct connection of an unmixed heating circuit (cannot be used for bivalent systems): High-efficiency heating circulation pump (note free pressure) Overflow valve and safety assembly with pressure gauge Expansion vessel (24 l) Heat quantity meter for heating/hot water preparation, soft starter (from SIK 8), integrated flow and return sensors External sensor (standard NTC-2), dirt filter and high-performance vent (1½') with microbubble separation for brine circuit included in delivery. Heat pump structured white (similar to RAL 9003). (Spectrum of efficiency classes A+++ to D)
