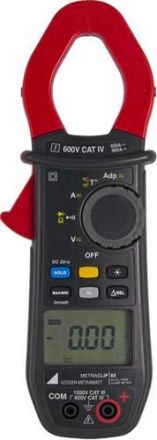

Gossen Metrawatt M312J TRMS Metraclip 85 600V CAT IV clamp current meter

In stock
SKU: 899227
€697.92
Into a basketIn the basketGo

Overview

Multi-measuring clamp for current, voltage and frequency, 600 V CAT IV. The multi-measuring clamp METRAclip 85 is suitable for measurements in applications in the service and industrial sectors, for troubleshooting electrical installations and for repairing electric vehicles. Clamp opening: 34 mmCurrent: AC 60.00 / 600.0 A rms at 10 Hz - 3 kHz DC ±60.00 / ±600.0 / ±900 A dc AC+DC 60.00 / 600.0 A rms60.00 / 600.0 / 900 A peakStarting current: 6 ..600 A rms / 900 A peakVoltage: AC 60.00 / 600.0 / 1000 V rms at 10 Hz - 3 kHz DC ±60.00 / ±600.0 / ±1000 V dc AC+DC 60.00 / 600.0 / 1000 V rms60.00 / 600.0 / 1400 V peak Frequency: f (Uac) 5.0 Hz ..19.99 kHzf (Iac) 5.0 Hz ..2999 Hz METRAclip 85 Electrical safety in accordance with IEC 61010 True RMS measurement TRMS Current measurement (AC and DC) Voltage measurement (AC and DC) Start-up and overcurrent measurements (True Inrush) Frequency measurement Automatic range selection Relative and differential measurements Display storage (DATA HOLD) Data acquisition (MIN, MAX, PEAK) Continuity test, acoustic signal Resistance measurement Diode test Temperature measurement - Thermocouple type K Connection of sensors and measuring transducers with voltage output LCD / Digits with blue backlight. 6,000 Automatic switch-off Auto-Power-Off Test report incl. 1 multimeter clamp2 red and black measuring cables (length 1.6 m), each with touch-protected plug, CAT IV 1000 V/15 A1 thermocouple sensor type K with banana plugs1 9 V battery1 carrying case with wrist strap1 test report1 safety data sheet1 quick guide in German/English/French/Italian language1 operating instructions in German/English/French/Italian language on mini CD-ROM

Property Value
Power measurement: no
Current measuring range/DC: 0.01 to 900 A
Current measuring range/AC: 0.01 to 600 A
Clamp opening: 34 mm
True RMS measurement (TRMS): yes
Leakage current measurement: yes
Harmonics measurement: no
Measurement in cable with forward and return conductors: yes
Version as adapter for connecting to multimeter: no
Interface: no
Voltage measurement/AC: yes
Voltage measurement/DC: yes
Resistance measuring range: yes
Display: digital
Analog bar display: no
Measuring range selection: automatic
Measuring circuit category: CAT IV

Characteristics

HABTRMS Metraclip 85 600V CAT IV
ManufacturerGossen Metrawatt
HANM312J
GTIN4012932124712
InterfaceNo
Gossen Metrawatt M312J TRMS Metraclip 85 600V CAT IV clamp current meter
