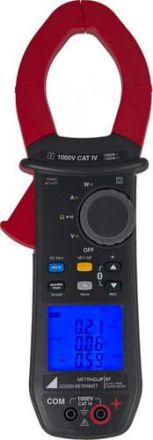

Multi-measuring clamp for current, voltage, power, harmonics and frequency, 1000 V CAT IV. The METRAclip 87 multi-measuring clamp is suitable for measuring medium power in the low-voltage range and thus offers optimum safety for every type of system and under all measuring conditions. In addition to applications such as maintenance, troubleshooting or servicing, the clamp is also used for measurements in rail traffic and in low-voltage distribution networks. Clamp opening: 48 mmCurrent: AC 99.99 / 999.9 A rms at 10 Hz - 2 kHz DC ±99.99 / ±999.9 / ±1500 A dc AC+DC 99.99 / 999.9 A rms99.99 / 999.9 / 1500 A peak Starting current: 10 ..1000 A rms / 1500 A peakVoltage: AC 99.99 / 999.9 V rms at 10 Hz - 3 kHz DC ±99.99 / ±999.9 V dc AC+DC 99.99 / 999.9 V rms99.99 / 999.9 / 1500 V peak Frequency: f (Uac) 5.0 Hz ..19.99 kHzf (Iac) 5.0 Hz ..1999 Hz Power: Active power: 9999 W / 99.99 / 999.9 / 1500 kW Apparent power: 9999 VA / 99.99 / 999.9 / 1500 kVA Reactive power: 9999 var / 99.99 / 999.9 / 1500 kvar PF -1.00 ..+1.00 DPF 0.00 ..1.00 Distortion: Ripple 0.1 ..1000 % CF 1.00 ..10. 00 THDr / THDf 0.0 ..100 % / 0.0 ..1000 % Harmonics H01 ..H25 METRAclip 87 Electrical safety in accordance with IEC 61010 True RMS measurement TRMS Current measurement (AC and DC) Voltage measurement (AC and DC) Power measurement (W, VA, var and PF) Measurement of the crest factor (CF) Displacement factor (DPF) Residual ripple (RIPPLE) Harmonic measurement (THD) Start-up and overcurrent measurements (True Inrush) Frequency measurement Automatic measuring range switching Display storage (DATA HOLD) Data logging (MIN, MAX, PEAK) Continuity test, acoustic signal Resistance measurement Recording of measured values Wireless data transfer via Bluetooth LCD / Digits with blue backlight 10,000 Automatic switch-off Auto-power-off Software for evaluating measured values Test report incl. 1 multimeter clamp2 red and black measuring cables (length 1.6 m), each with touch-protected plug and attachable test probe, CAT IV 1000 V/15 A2 red and black crocodile clips, CAT IV 1000 V/15 A4 1.5 V batteries1 carrying case with wrist strap1 test report1 safety data sheet1 quick guide in German/English/French/Italian language1 operating instructions in German/English/French/Italian language on mini CD-ROM1 PC program for evaluating measured values on mini CD-ROM
