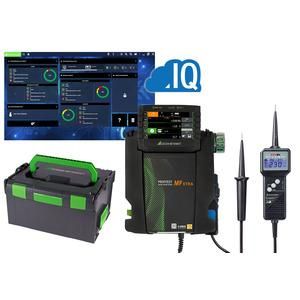

Gossen Metrawatt M537H PROFiTEST MF XTRA 0105-Set measuring and testing device

In stock
SKU: 899383
€4,269.39
Into a basketIn the basketGo

Overview

PROFiTEST MF XTRA 0105 set for testing the effectiveness of protective measures on stationary electrical systems after repeated testing, in particular to comply with DGUV Regulation 3. . PROFiTEST MF XTRA 0105 set with PROFiTEST MF XTRA as well as voltage tester and defined accessories for testing the effectiveness of protective measures on stationary electrical systems in accordance with the test standards according to EN 50110-1 (DIN0105-100). Measurement category 300 V CAT IV / 600 V CAT III. The PROFiTEST MF XTRA 0105 set makes your investment decision easy. Because with accessories perfectly tailored to your requirements, the set is particularly suitable for your testing tasks, including within the framework of DGUV Regulation 3. Professional recording of test objects and documentation of the test. Context-sensitive color graphic display Measurement and test sequence - easy creation of the system structure / measure & save / generate protocol Pre-configured and self-programmable test sequences for rapid testing of electrical systems Storage concept for up to 50,000 data sets Testing of all current all-current sensitive RCDs, RDC-DD, RCMB Operator protection through PE detection when used by finger contact Future-oriented connectivity. Defined accessories for special measuring tasks Intuitive user guidance with help function to support upcoming measuring tasks All crucial measuring functions - can be selected quickly using the rotary switch. The compact, shock-proof housing with integrated rubber protection makes it particularly suitable for mobile use, even on construction sites and in industrial environments. Also suitable for international use thanks to extensive setting options, including language. Four-wire measuring technology - no compensation of the measuring leads required. Tests of the effectiveness of protective measures on fixed electrical installations for periodic tests according to EN 50110-1 (DIN0105-100) and other country-specific standards. Defined accessories for special measuring tasks Wide-range measuring device for all AC and three-phase networks with voltages from 65 to 500 V and frequencies from 15.4 to 420 Hz Loop and network impedance measurement with DC pre-magnetization Measurement of insulation resistance with nominal voltage, with variable or increasing test voltage Low-resistance measurement with automatic polarity reversal Testing of residual current devices and special RCD circuit breakers (selective S, SRCDs, PRCDs, Schukomat, Sidos, type G/R, AC, A, E-EV, F, F-EV, B, B+, B-MI) Testing of RDC-DD according to IEC 62955 and RCMB according to IEC 62752 Testing of residual current (RCD) protective circuits in IT networks Testing of insulation monitoring devices (IMDs) Testing of residual current monitoring devices (RCMs) Measuring the earthing resistance (network operation / Battery operation) Leakage current measurement with PRO-AB adapter Standard testing of e-charging stations according to IEC 61851-1 in conjunction with a suitable test adapter Testing of PRCD types S and K using PROFITEST PRCD Residual voltage measurement according to EN 60204-1 Auto function test sequences USB interface Push-print function – sending the measured value after the measurement has been completed. Context-sensitive color graphic display Innovative and comprehensive operating concept Fast access to measurement and test functions using rotary switches and soft keys User-friendly No time-consuming re-plugging of the measuring cables required Modern data management Comprehensive data management concept in conjunction with the user software, including customer and measured value management, test sequences, logging Unique storage concept Creation of system structures - customer, system, machine, distributor, RCD, circuits, earthing, equipotential bonding rail, equipment and individual measuring points

Property Value
Display: digital
Insulation resistance measurement: yes
Surge arrester test: yes
Loop resistance/impedance measurement: yes
Internal network resistance measurement: yes
RCD/FI test: yes
RCD/FI test with increasing fault current: yes
RCD/FI analysis function: yes
Rotation field test: yes
Low resistance measurement: yes
Earthing measurement: yes
Selective earthing measurement: yes
Earth loop measurement: yes
Specific earthing measurement: yes
Measured value memory: yes
Interface: yes
Printer connection: no
Limit value display: yes
Resistances of insulating floors and walls: yes
Loop measurement without RCD/FI tripping: yes
Determination of short-circuit current/overcurrent protection devices: yes
Integrated printer: no
Remote control of the test device: yes
Insulation resistance measurement with ramp function: yes
Measurement of leakage currents with adapter: yes
Low-resistance measurement with ramp function: yes
PRCD test type S, type K: yes
Testing of e-charging stations, simulation of vehicle status: yes
Testing of IMDs and RCMs: yes
Structured measured value storage: yes

Characteristics

HABM537H PROFiTEST MF XTRA 0105-Set
ManufacturerGossen Metrawatt
HANM537H
GTIN4012932134896
InterfaceYes
Gossen Metrawatt M537H PROFiTEST MF XTRA 0105-Set measuring and testing device
