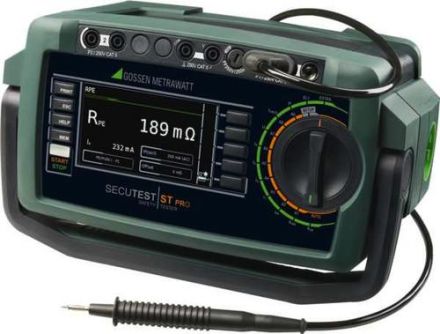

Test device with standard-compliant test sequences for testing the electrical safety of devices after repairs and during a repeat test (DGUV Regulation 3, MPBetreibV) including IZYTRONIQ data processing software. The SECUTEST ST PRO offers all measuring and testing functions for testing the effectiveness of protective measures for electrical devices, medical devices and welding devices - both with predefined and optionally with programmable test sequences that are required in accordance with the latest test standards DIN EN 50678 (VDE 0701) DIN EN 50699 (VDE 0702), IEC/EN 62353 (VDE 0751) and IEC/EN 60974-4 (VDE 0544-4). The new, even further optimized measuring cycles ensure even more measurements per day. And operation is so simple that tests can be carried out without any special knowledge. With the SECUTEST PRO service guarantee, you can be sure that your test device will still be up to date in 10 years. It is not for nothing that our customers have been using the SECUTEST for over 20 years - and it is the best-selling safety tester for all devices with and without plugs up to 400 volts. Pre-configured and self-programmable test sequences for quickly testing electrical devices. Comprehensive data management and storage concept for automatic test sequences and individual measurements for up to 50,000 data records. Report creation in HTML on USB memory. Create test sequences yourself using the IZYTRONIQ. User guidance through pre-programmed test sequences according to standards with automatic evaluation - therefore ideally suited for use by trained persons. Quick access to the measuring and testing functions using rotary switches, direct selection keys and soft keys. The compact, shock-proof housing with integrated rubber protection makes it particularly suitable for mobile use, even on construction sites and in industrial environments. The unique multiple measurement enables convenient documentation of several measuring points. Also suitable for international use thanks to extensive setting options for language, keyboard, character set, date, time and country-specific standard versions. Safe, comprehensive and efficient testing of electrical devices according to manufacturer specifications using programmable test sequences of any standard electrical devices according to DIN0701-0702 including extension cables and PRCDs (the new SECUTEST ST series is already prepared for the new DIN EN 50678. The test sequences can be downloaded and installed via the myGMC portal.) electrical medical devices according to IEC/EN 62353 (VDE 0751) arc welding equipment according to IEC/EN 60974-4 (VDE 0544-4). Protective conductor resistance measurement (passive, active, with 2 probes) 200mA and 10A insulation resistance measurement Leakage current measurements Replacement (alternative) method, direct method, differential method: protective conductor current, contact current, device leakage current, patient leakage current, leakage current from the application part Voltage measurement: contact voltage, SELV, PELV voltage PRCD trigger time Function test (U,I,P,S,LF,f) Line test: continuity, short circuit, polarity (wire exchange) Temperature measurement (for Pt100/Pt1000 sensor. Pre-programmed sequences (according to 0701-0702) for testing PRCDs of the type PRCD standard, SPE-PRCD, PRCD-S and PRCD-K Remote control possible Additional database elements property, building, level and room in order to be able to structure more extensive data sets better as well as additional fields department + cost center Multiprint – printout of all protocols of a test object with 1 keystroke (on Thermal printer Z721S or on USB stick) User-defined protocol templates (for thermal printer Z721S or USB stick) RFID transponder (Z751R,S,T) read and write (with
Property | Value |
Display: | graphical |
Insulation resistance measuring range: | 0.01 to 300 MOhm |
Protective conductor resistance measuring range: | 0 to 30 Ohm |
Interface: | yes |
Power measurement: | yes |
Consumer current measurement: | yes |
Limit value display: | yes |
Automatic test sequence: | yes |
Printer connection: | yes |
Testing of extension cables: | yes |
Connection for external measuring adapters: | yes |
Protective conductor current: | yes |
Touch current: | yes |
Measurement value memory: | yes |
Integrated printer: | no |
Active test: | yes |
Alternative method: | yes |
Differential current method: | yes |
Direct method: | yes |
Passive test: | yes |
Voltage measurement: | yes |
Suitable for use by a trained person Person: | yes |
Interface type: | USB-B |
Printer connection: | USB-A |
