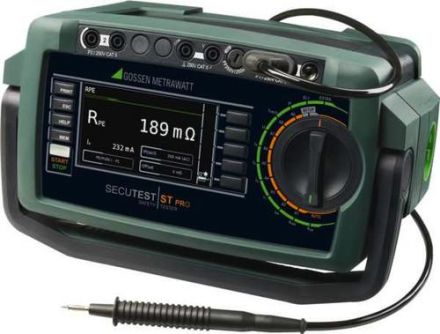

Gossen Metrawatt M707C SECUTEST ST PRO COMFORT test device

In stock
SKU: 899351
€4,924.96
Into a basketIn the basketGo

Overview

Test device with standard-compliant test sequences for testing the electrical safety of devices after repairs and during a repeat test (DGUV Regulation 3, MPBetreibV) optimized for IZYTRONIQ. The SECUTEST ST PRO COMFORT offers all measuring and testing functions for testing the effectiveness of protective measures for electrical devices, medical devices and welding devices - both with predefined and optionally with programmable test sequences that are required in accordance with the latest test standards DIN EN 50678 (VDE 0701) DIN EN 50699 (VDE 0702), IEC/EN 62353 (VDE 0751) and IEC/EN 60974-4 (VDE 0544-4). The new, even further optimized measuring cycles ensure even more measurements per day. And operation is so simple that tests can be carried out without any special knowledge. With the SECUTEST PRO service guarantee, you can be sure that your test device will still be up to date in 10 years. It is not for nothing that some of our customers have been using the SECUTEST for over 20 years - and it is the best-selling safety tester for all devices with and without plugs up to 400 volts. Pre-configured and self-programmable test sequences for fast testing of electrical devices Comprehensive data management and storage concept for automatic test sequences and individual measurements for up to 50,000 data records Report creation in HTML on USB memory Create test sequences yourself with the help of the IZYTRONIQ Bluetooth for data transfer (push print). User guidance through pre-programmed test sequences according to standards with automatic evaluation - therefore ideally suited for use by trained persons. Quick access to the measuring and testing functions using rotary switches, direct selection keys and soft keys. The compact, shock-proof housing with integrated rubber protection makes it particularly suitable for mobile use, even on construction sites and in industrial environments. The unique multiple measurement enables convenient documentation of several measuring points. Also suitable for international use thanks to extensive setting options for language, keyboard, character set, date, time and country-specific standard versions. Safe, comprehensive and efficient testing of electrical devices according to manufacturer specifications using programmable test sequences of any standard electrical devices according to DIN0701-0702 including extension cables and PRCDs (the new SECUTEST ST series is already prepared for the new DIN EN 50678. The test sequences can be downloaded and installed via the myGMC portal.) electrical medical devices according to IEC/EN 62353 (VDE 0751) arc welding equipment according to IEC/EN 60974-4 (VDE 0544-4). Protective conductor resistance measurement (passive, active, with 2 probes) 200mA and 10A insulation resistance measurement Leakage current measurements AC, DC, effective Replacement (alternative) method, direct method, differential method: protective conductor current, contact current Device leakage current, patient leakage current, leakage current from the application part Voltage measurement: contact voltage, SELV, PELV voltage PRCD tripping time Function test (U,I,P,S,LF,f) Line test (requires accessories e.g. EL1, AT3 or VL2E) Continuity, short circuit, polarity (wire swap) Temperature measurement (for Pt100/Pt1000 sensor Bluetooth for data transfer (push print). pre-programmed sequences (according to 0701-0702) for testing PRCDs of type PRCD standard, SPE-PRCD, PRCD-S and PRCD-K Remote control by IZYTRONIQ possible (via USB) Additional database elements property, building, level and space to better structure larger data sets as well as additional fields department + cost center Multiprint - printout of all protocols of a test object with 1 keystroke

Property Value
Display: graphical
Insulation resistance measuring range: 0.01 to 300 MOhm
Protective conductor resistance measuring range: 0 to 30 Ohm
Interface: yes
Power measurement: yes
Consumer current measurement: yes
Limit value display: yes
Automatic test sequence: yes
Printer connection: yes
Testing extension cables: yes
Connection for external measuring adapters: yes
Protective conductor current: yes
Touch current: yes
Measured value memory: yes
Printer integrated: no
Active testing: yes
Alternative method: yes
Differential current method: yes
Direct method: yes
Passive testing: yes
Voltage measurement: yes
Suitable for use by a trained person: yes
Printer port: USB-A

Characteristics

HABSECUTEST ST PRO COMFORT
ManufacturerGossen Metrawatt
HANM707C
GTIN4012932133363
InterfaceYes
