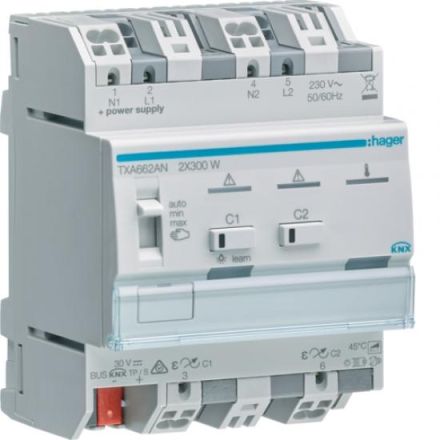

Universal dimming actuator 2-way KNX easy, 2x300W, ESL/LED, can be combined. Universal dimming actuator REG for switching/dimming and for automatic detection of the load type (autodetect method). With Easydetect method for optimizing the dimming range using the button press mode on the external sensor, on the device or via an object. Modular device with integrated bus coupler, QuickConnect plug-in terminals for auxiliary voltage, KNX bus connection, load connection and labeling field. Control button(s) for manual operation with status LED (single-surface operation), illuminated dimming mode button. Control LED for short circuit, overload protection and overheating protection. Slide switch auto/min/max./manual and illuminated programming button. Functions: switching/dimming loads (note the manufacturer's load information). Dimming channel selection for dimming, ON/OFF, timer function with switch-off warning, forced control with the respective status display, automatic function can be activated/deactivated, 64 scene functions can be set per channel. Manual switching and dimming without a bus is possible. The dimming channels can be connected together in various combinations to increase performance. The status object of the output is defined by the current flow through the lamp. Notes: The device can be programmed using the easy commissioning tool, easy configuration server or the ETS (from version 4). Do not connect conventional transformers together with electronic transformers.
