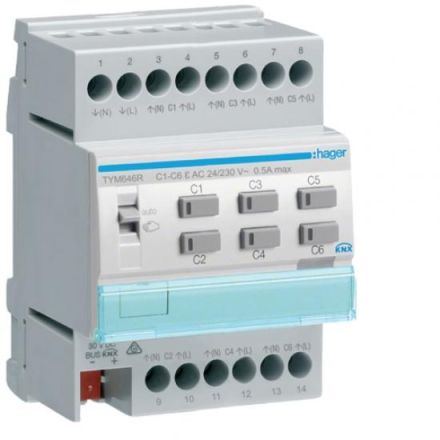

Heating actuator 6-way KNX, with controller for 24/230V actuators, Triac. Heating actuator (REG) with 6 electronic outputs (Triac) for silent control of electrothermal actuators for heating systems or cooling ceilings. Consists of a series-mounted device with integrated bus coupler, bus connection via KNX connection terminal, slide switch auto/manual, 6 manual buttons for open/close per actuator channel with status LED (default, short circuit, overload), programming button with integrated LED, labeling field and screw terminals for input and output voltages. Functions: Output voltage for compatible valves 230 V AC or 24 V AC, temperature controller for heating and cooling, with 12 temperature controllers for controlling up to 12 independent zones, on/off or PWM control. Manual operation via slide switch of the channel with 0% - 50% - 100%. Diagnostic function via output with multi-colored LED, time/date programmable valve protection/pump seizure protection and forced position. Different values for summer/winter operation. 2 x logic block. Parameterizable setpoints for normal, forced or emergency operation. Cyclic monitoring/detection of the input signals from thermostats (monitoring time approx. 45 min). If the thermostat is defective, the triac output is set to emergency operation. Note: The device can be programmed using the ETS (from version 5). Actuators with the same operating voltage must be connected to all actuator channels. Please note the installation instructions for heating construction/actuator manufacturers.
